4. Introducing the Community Earth System Model (CESM)#
This notebook is part of The Climate Laboratory by Brian E. J. Rose, University at Albany.
About the CESM#
What is it?#
CESM is one of a handful of complex coupled GCMs that are used as part of the IPCC process.
Developed and maintained at NCAR (Boulder CO) by a group of climate scientists and software engineers.
“Community” refers to the fact that the code is open-source, with new pieces contributed by a wide variety of users.
I use CESM in my own research. We are going to be using CESM in this course. For lots more information about CESM:
Key components of CESM:#
see https://www.cesm.ucar.edu/models/cesm1.2/ for more info
Atmospheric model (AGCM)
Community Atmsophere Model (CAM)
Ocean model (OGCM)
Parallel Ocean Program (POP)
Land surface model
Community Land Model (CLM)
Sea ice model
Community Ice CodE (CICE)
The software is somewhat modular, so different submodels can be combined together depending on the nature of the scientific problem at hand and the available computer power.
Recall that we saw this schematic of different ways to represent the ocean in climate models:
Our numerical experiments with CESM#
Atmosphere#
Horizontal resolution about 2º lat/lon
AGCM solves the fundamental equations:
Conservation of momentum, mass, energy, water, equation of state
At 2º we resolve the synoptic-scale dynamics
storm tracks and cyclones.
We do NOT resolve the mesoscale and smaller
thunderstorms, individual convective events, clouds
These all must be parameterized.
Model also solves equations of radiative transfer. This takes account of
composition of the atmosphere and the absorption properties of different gases
radiative effects of clouds.
Sea ice#
Resolution of 1º.
Thermodynamics (conservation of energy, water and salt)
determines freezing and melting
Dynamics (momentum equations)
determine ice motion and deformation.
Complex! Sea ice is sort of a mixture of a fluid and a solid.
Land surface model#
Same resolution as atmosphere.
Determines surface fluxes of heat, water, momentum (friction) based on prescribed vegetation types.
Don’t actually know much about how it works!
Great topic for someone to dig in to for their term project.
Ocean#
Same grid as sea ice, 1º.
Exchanges heat, water, and momentum with the atmosphere and sea ice
Receives runoff from the land surface (rivers)
Full 3D simulation of the currents.
Experimental setup#
Model is given realistic atmospheric composition, realistic solar radiation, etc.
We perform a preindustrial control run to get a baseline simulation, and take averages of several years (because the model has internal variability – every year is a little bit different)
We then (later) we will change something, e.g. double the atmospheric \(CO_2\)!
And allow the model to adjust toward a new equilibrium, just as we did with the toy energy balance model.
Browsing input data with xarray#
First, let’s take a look at some of the ingredients that go into the control run. All of the necessary data will be served up by a special data server sitting in the department, so you should be able to run this code to interact with the data on any computer that is connected to the internet.
You need to be connected to the internet to run the code in this notebook#
You can browse the available data through a web interface here:
http://thredds.atmos.albany.edu:8080/thredds/catalog.html
Within this folder called CESM archive
, you will find another folder called som_input
which contains all the input files.
The data are all stored in NetCDF
files, a standard file format for self-describing gridded data.
%matplotlib inline
import numpy as np
import matplotlib.pyplot as plt
import xarray as xr
We are going to use a package called xarray (abbreviated here as xr
) to work with the datasets.
Boundary conditions: continents and topography#
Here we are going to load the input topography file and take a look at what’s inside.
In this case we are passing it a URL to our online dataserver. We’ll put the URL in a string variable called datapath
to simplify things later on.
cesm_data_path = "http://thredds.atmos.albany.edu:8080/thredds/dodsC/CESMA/"
cesm_input_path = cesm_data_path + "som_input/"
# Notice that in Python we can easily concatenate strings together just by `adding` them
fullURL = cesm_input_path + "USGS-gtopo30_1.9x2.5_remap_c050602.nc"
print( fullURL)
http://thredds.atmos.albany.edu:8080/thredds/dodsC/CESMA/som_input/USGS-gtopo30_1.9x2.5_remap_c050602.nc
# Now we actually open the dataset
topo = xr.open_dataset( fullURL )
topo
<xarray.Dataset> Dimensions: (lat: 96, lon: 144) Coordinates: * lat (lat) float64 -90.0 -88.11 -86.21 -84.32 ... 86.21 88.11 90.0 * lon (lon) float64 0.0 2.5 5.0 7.5 10.0 ... 350.0 352.5 355.0 357.5 Data variables: PHIS (lat, lon) float64 2.796e+04 2.796e+04 2.796e+04 ... 0.0 0.0 SGH (lat, lon) float64 33.17 32.59 31.62 30.14 ... 0.0 0.0 0.0 0.0 SGH30 (lat, lon) float64 5.535 5.557 5.51 5.418 ... 0.0 0.0 0.0 0.0 LANDFRAC (lat, lon) float64 1.0 1.0 1.0 1.0 1.0 ... 0.0 0.0 0.0 0.0 0.0 LANDM_COSLAT (lat, lon) float64 1.0 1.0 1.0 1.0 ... 0.03106 0.03094 0.03082 Attributes: history: Written on date: 20050602\ndefinesurf -remap -t /fs/cgd/csm/i... make_ross: true topofile: /fs/cgd/csm/inputdata/atm/cam/topo/USGS-gtopo30_10min_c050419.nc gridfile: /fs/cgd/csm/inputdata/atm/cam/coords/fv_1.9x2.5.nc landmask: /fs/cgd/csm/inputdata/atm/cam2/hrtopo/landm_coslat.nc
- lat: 96
- lon: 144
- lat(lat)float64-90.0 -88.11 -86.21 ... 88.11 90.0
- long_name :
- latitude
- units :
- degrees_north
array([-90. , -88.105263, -86.210526, -84.315789, -82.421053, -80.526316, -78.631579, -76.736842, -74.842105, -72.947368, -71.052632, -69.157895, -67.263158, -65.368421, -63.473684, -61.578947, -59.684211, -57.789474, -55.894737, -54. , -52.105263, -50.210526, -48.315789, -46.421053, -44.526316, -42.631579, -40.736842, -38.842105, -36.947368, -35.052632, -33.157895, -31.263158, -29.368421, -27.473684, -25.578947, -23.684211, -21.789474, -19.894737, -18. , -16.105263, -14.210526, -12.315789, -10.421053, -8.526316, -6.631579, -4.736842, -2.842105, -0.947368, 0.947368, 2.842105, 4.736842, 6.631579, 8.526316, 10.421053, 12.315789, 14.210526, 16.105263, 18. , 19.894737, 21.789474, 23.684211, 25.578947, 27.473684, 29.368421, 31.263158, 33.157895, 35.052632, 36.947368, 38.842105, 40.736842, 42.631579, 44.526316, 46.421053, 48.315789, 50.210526, 52.105263, 54. , 55.894737, 57.789474, 59.684211, 61.578947, 63.473684, 65.368421, 67.263158, 69.157895, 71.052632, 72.947368, 74.842105, 76.736842, 78.631579, 80.526316, 82.421053, 84.315789, 86.210526, 88.105263, 90. ])
- lon(lon)float640.0 2.5 5.0 ... 352.5 355.0 357.5
- long_name :
- longitude
- units :
- degrees_east
array([ 0. , 2.5, 5. , 7.5, 10. , 12.5, 15. , 17.5, 20. , 22.5, 25. , 27.5, 30. , 32.5, 35. , 37.5, 40. , 42.5, 45. , 47.5, 50. , 52.5, 55. , 57.5, 60. , 62.5, 65. , 67.5, 70. , 72.5, 75. , 77.5, 80. , 82.5, 85. , 87.5, 90. , 92.5, 95. , 97.5, 100. , 102.5, 105. , 107.5, 110. , 112.5, 115. , 117.5, 120. , 122.5, 125. , 127.5, 130. , 132.5, 135. , 137.5, 140. , 142.5, 145. , 147.5, 150. , 152.5, 155. , 157.5, 160. , 162.5, 165. , 167.5, 170. , 172.5, 175. , 177.5, 180. , 182.5, 185. , 187.5, 190. , 192.5, 195. , 197.5, 200. , 202.5, 205. , 207.5, 210. , 212.5, 215. , 217.5, 220. , 222.5, 225. , 227.5, 230. , 232.5, 235. , 237.5, 240. , 242.5, 245. , 247.5, 250. , 252.5, 255. , 257.5, 260. , 262.5, 265. , 267.5, 270. , 272.5, 275. , 277.5, 280. , 282.5, 285. , 287.5, 290. , 292.5, 295. , 297.5, 300. , 302.5, 305. , 307.5, 310. , 312.5, 315. , 317.5, 320. , 322.5, 325. , 327.5, 330. , 332.5, 335. , 337.5, 340. , 342.5, 345. , 347.5, 350. , 352.5, 355. , 357.5])
- PHIS(lat, lon)float64...
- long_name :
- surface geopotential
- units :
- m2/s2
- from_hires :
- true
- filter :
- remap
array([[2.796465e+04, 2.796465e+04, 2.796465e+04, ..., 2.796465e+04, 2.796465e+04, 2.796465e+04], [2.718626e+04, 2.724515e+04, 2.730367e+04, ..., 2.699761e+04, 2.706319e+04, 2.712589e+04], [2.562017e+04, 2.579349e+04, 2.595301e+04, ..., 2.497548e+04, 2.521368e+04, 2.542803e+04], ..., [1.720216e-02, 7.134989e-03, 2.748055e-03, ..., 1.569097e-01, 8.055879e-02, 3.857289e-02], [5.444020e-02, 3.951677e-02, 2.799566e-02, ..., 1.231596e-01, 9.609957e-02, 7.320690e-02], [0.000000e+00, 0.000000e+00, 0.000000e+00, ..., 0.000000e+00, 0.000000e+00, 0.000000e+00]])
- SGH(lat, lon)float64...
- long_name :
- standard deviation of 10-min elevations
- units :
- m
- from_hires :
- true
- filter :
- none (2x[1-2-1])
array([[33.165714, 32.58895 , 31.619638, ..., 34.000639, 33.841918, 33.565788], [33.132207, 29.684174, 24.428715, ..., 38.221234, 36.57675 , 35.068601], [34.493915, 29.407779, 24.443616, ..., 45.754387, 41.522436, 38.326687], ..., [ 0. , 0. , 0. , ..., 0. , 0. , 0. ], [ 0. , 0. , 0. , ..., 0. , 0. , 0. ], [ 0. , 0. , 0. , ..., 0. , 0. , 0. ]])
- SGH30(lat, lon)float64...
- long_name :
- standard deviation of elevation from 30s to 10m
- units :
- m
- from_hires :
- true
- filter :
- none (2x[1-2-1])
array([[5.534775, 5.556594, 5.510195, ..., 5.398728, 5.423457, 5.475314], [3.659992, 3.446485, 3.155976, ..., 4.255366, 4.006567, 3.819415], [3.171734, 2.746762, 2.411733, ..., 4.787499, 4.21638 , 3.645916], ..., [0. , 0. , 0. , ..., 0. , 0. , 0. ], [0. , 0. , 0. , ..., 0. , 0. , 0. ], [0. , 0. , 0. , ..., 0. , 0. , 0. ]])
- LANDFRAC(lat, lon)float64...
- long_name :
- gridbox land fraction
- from_hires :
- true
array([[1., 1., 1., ..., 1., 1., 1.], [1., 1., 1., ..., 1., 1., 1.], [1., 1., 1., ..., 1., 1., 1.], ..., [0., 0., 0., ..., 0., 0., 0.], [0., 0., 0., ..., 0., 0., 0.], [0., 0., 0., ..., 0., 0., 0.]])
- LANDM_COSLAT(lat, lon)float64...
- long_name :
- land ocean transition mask: ocean (0), continent (1), transition (0-1)
- from_hires :
- true
array([[1. , 1. , 1. , ..., 1. , 1. , 1. ], [1. , 1. , 1. , ..., 1. , 1. , 1. ], [1. , 1. , 1. , ..., 1. , 1. , 1. ], ..., [0.056661, 0.056016, 0.055372, ..., 0.058592, 0.05795 , 0.057306], [0.03068 , 0.030536, 0.030384, ..., 0.031058, 0.030942, 0.030816], [0.03068 , 0.030536, 0.030384, ..., 0.031058, 0.030942, 0.030816]])
- history :
- Written on date: 20050602 definesurf -remap -t /fs/cgd/csm/inputdata/atm/cam/topo/USGS-gtopo30_10min_c050419.nc -g /fs/cgd/csm/inputdata/atm/cam/coords/fv_1.9x2.5.nc -l /fs/cgd/csm/inputdata/atm/cam2/hrtopo/landm_coslat.nc USGS-gtopo30_1.9x2.5_remap_c05060
- make_ross :
- true
- topofile :
- /fs/cgd/csm/inputdata/atm/cam/topo/USGS-gtopo30_10min_c050419.nc
- gridfile :
- /fs/cgd/csm/inputdata/atm/cam/coords/fv_1.9x2.5.nc
- landmask :
- /fs/cgd/csm/inputdata/atm/cam2/hrtopo/landm_coslat.nc
The Dataset
object has several important attributes. Much of this should look familiar if you have worked with netCDF
data before. The xarray
package gives a very powerful and easy to use interface to the data.
We can access individual variables within the xarray.Dataset
object as follows:
topo.PHIS
<xarray.DataArray 'PHIS' (lat: 96, lon: 144)> array([[2.796465e+04, 2.796465e+04, 2.796465e+04, ..., 2.796465e+04, 2.796465e+04, 2.796465e+04], [2.718626e+04, 2.724515e+04, 2.730367e+04, ..., 2.699761e+04, 2.706319e+04, 2.712589e+04], [2.562017e+04, 2.579349e+04, 2.595301e+04, ..., 2.497548e+04, 2.521368e+04, 2.542803e+04], ..., [1.720216e-02, 7.134989e-03, 2.748055e-03, ..., 1.569097e-01, 8.055879e-02, 3.857289e-02], [5.444020e-02, 3.951677e-02, 2.799566e-02, ..., 1.231596e-01, 9.609957e-02, 7.320690e-02], [0.000000e+00, 0.000000e+00, 0.000000e+00, ..., 0.000000e+00, 0.000000e+00, 0.000000e+00]]) Coordinates: * lat (lat) float64 -90.0 -88.11 -86.21 -84.32 ... 84.32 86.21 88.11 90.0 * lon (lon) float64 0.0 2.5 5.0 7.5 10.0 ... 350.0 352.5 355.0 357.5 Attributes: long_name: surface geopotential units: m2/s2 from_hires: true filter: remap
- lat: 96
- lon: 144
- 2.796e+04 2.796e+04 2.796e+04 2.796e+04 2.796e+04 ... 0.0 0.0 0.0 0.0
array([[2.796465e+04, 2.796465e+04, 2.796465e+04, ..., 2.796465e+04, 2.796465e+04, 2.796465e+04], [2.718626e+04, 2.724515e+04, 2.730367e+04, ..., 2.699761e+04, 2.706319e+04, 2.712589e+04], [2.562017e+04, 2.579349e+04, 2.595301e+04, ..., 2.497548e+04, 2.521368e+04, 2.542803e+04], ..., [1.720216e-02, 7.134989e-03, 2.748055e-03, ..., 1.569097e-01, 8.055879e-02, 3.857289e-02], [5.444020e-02, 3.951677e-02, 2.799566e-02, ..., 1.231596e-01, 9.609957e-02, 7.320690e-02], [0.000000e+00, 0.000000e+00, 0.000000e+00, ..., 0.000000e+00, 0.000000e+00, 0.000000e+00]])
- lat(lat)float64-90.0 -88.11 -86.21 ... 88.11 90.0
- long_name :
- latitude
- units :
- degrees_north
array([-90. , -88.105263, -86.210526, -84.315789, -82.421053, -80.526316, -78.631579, -76.736842, -74.842105, -72.947368, -71.052632, -69.157895, -67.263158, -65.368421, -63.473684, -61.578947, -59.684211, -57.789474, -55.894737, -54. , -52.105263, -50.210526, -48.315789, -46.421053, -44.526316, -42.631579, -40.736842, -38.842105, -36.947368, -35.052632, -33.157895, -31.263158, -29.368421, -27.473684, -25.578947, -23.684211, -21.789474, -19.894737, -18. , -16.105263, -14.210526, -12.315789, -10.421053, -8.526316, -6.631579, -4.736842, -2.842105, -0.947368, 0.947368, 2.842105, 4.736842, 6.631579, 8.526316, 10.421053, 12.315789, 14.210526, 16.105263, 18. , 19.894737, 21.789474, 23.684211, 25.578947, 27.473684, 29.368421, 31.263158, 33.157895, 35.052632, 36.947368, 38.842105, 40.736842, 42.631579, 44.526316, 46.421053, 48.315789, 50.210526, 52.105263, 54. , 55.894737, 57.789474, 59.684211, 61.578947, 63.473684, 65.368421, 67.263158, 69.157895, 71.052632, 72.947368, 74.842105, 76.736842, 78.631579, 80.526316, 82.421053, 84.315789, 86.210526, 88.105263, 90. ])
- lon(lon)float640.0 2.5 5.0 ... 352.5 355.0 357.5
- long_name :
- longitude
- units :
- degrees_east
array([ 0. , 2.5, 5. , 7.5, 10. , 12.5, 15. , 17.5, 20. , 22.5, 25. , 27.5, 30. , 32.5, 35. , 37.5, 40. , 42.5, 45. , 47.5, 50. , 52.5, 55. , 57.5, 60. , 62.5, 65. , 67.5, 70. , 72.5, 75. , 77.5, 80. , 82.5, 85. , 87.5, 90. , 92.5, 95. , 97.5, 100. , 102.5, 105. , 107.5, 110. , 112.5, 115. , 117.5, 120. , 122.5, 125. , 127.5, 130. , 132.5, 135. , 137.5, 140. , 142.5, 145. , 147.5, 150. , 152.5, 155. , 157.5, 160. , 162.5, 165. , 167.5, 170. , 172.5, 175. , 177.5, 180. , 182.5, 185. , 187.5, 190. , 192.5, 195. , 197.5, 200. , 202.5, 205. , 207.5, 210. , 212.5, 215. , 217.5, 220. , 222.5, 225. , 227.5, 230. , 232.5, 235. , 237.5, 240. , 242.5, 245. , 247.5, 250. , 252.5, 255. , 257.5, 260. , 262.5, 265. , 267.5, 270. , 272.5, 275. , 277.5, 280. , 282.5, 285. , 287.5, 290. , 292.5, 295. , 297.5, 300. , 302.5, 305. , 307.5, 310. , 312.5, 315. , 317.5, 320. , 322.5, 325. , 327.5, 330. , 332.5, 335. , 337.5, 340. , 342.5, 345. , 347.5, 350. , 352.5, 355. , 357.5])
- long_name :
- surface geopotential
- units :
- m2/s2
- from_hires :
- true
- filter :
- remap
Plotting the topography#
We will now read the geopotential and make a plot of the topography of the Earth’s surface as represented on the 2º grid. The code below makes a colorful plot of the topography. We also use the land-sea mask in order to plot nothing at grid points that are entirely ocean-covered.
Execute this code exactly as written first, and then play around with it to see how you might customize the graph.
g = 9.8 # gravity in m/s2
meters_per_kilometer = 1E3
height = topo.PHIS / g / meters_per_kilometer # in kilometers
# Note that we have just created a new xarray.DataArray object that preserves the axis labels
# Let's go ahead and give it some useful metadata:
height.attrs['units'] = 'km'
height.name = 'height'
height
<xarray.DataArray 'height' (lat: 96, lon: 144)> array([[2.85353559e+00, 2.85353559e+00, 2.85353559e+00, ..., 2.85353559e+00, 2.85353559e+00, 2.85353559e+00], [2.77410830e+00, 2.78011779e+00, 2.78608862e+00, ..., 2.75485770e+00, 2.76155041e+00, 2.76794791e+00], [2.61430262e+00, 2.63198888e+00, 2.64826593e+00, ..., 2.54851832e+00, 2.57282431e+00, 2.59469735e+00], ..., [1.75532270e-06, 7.28060055e-07, 2.80413809e-07, ..., 1.60111973e-05, 8.22028425e-06, 3.93600870e-06], [5.55512288e-06, 4.03232300e-06, 2.85670028e-06, ..., 1.25673050e-05, 9.80607842e-06, 7.47009192e-06], [0.00000000e+00, 0.00000000e+00, 0.00000000e+00, ..., 0.00000000e+00, 0.00000000e+00, 0.00000000e+00]]) Coordinates: * lat (lat) float64 -90.0 -88.11 -86.21 -84.32 ... 84.32 86.21 88.11 90.0 * lon (lon) float64 0.0 2.5 5.0 7.5 10.0 ... 350.0 352.5 355.0 357.5 Attributes: units: km
- lat: 96
- lon: 144
- 2.854 2.854 2.854 2.854 2.854 2.854 2.854 ... 0.0 0.0 0.0 0.0 0.0 0.0
array([[2.85353559e+00, 2.85353559e+00, 2.85353559e+00, ..., 2.85353559e+00, 2.85353559e+00, 2.85353559e+00], [2.77410830e+00, 2.78011779e+00, 2.78608862e+00, ..., 2.75485770e+00, 2.76155041e+00, 2.76794791e+00], [2.61430262e+00, 2.63198888e+00, 2.64826593e+00, ..., 2.54851832e+00, 2.57282431e+00, 2.59469735e+00], ..., [1.75532270e-06, 7.28060055e-07, 2.80413809e-07, ..., 1.60111973e-05, 8.22028425e-06, 3.93600870e-06], [5.55512288e-06, 4.03232300e-06, 2.85670028e-06, ..., 1.25673050e-05, 9.80607842e-06, 7.47009192e-06], [0.00000000e+00, 0.00000000e+00, 0.00000000e+00, ..., 0.00000000e+00, 0.00000000e+00, 0.00000000e+00]])
- lat(lat)float64-90.0 -88.11 -86.21 ... 88.11 90.0
- long_name :
- latitude
- units :
- degrees_north
array([-90. , -88.105263, -86.210526, -84.315789, -82.421053, -80.526316, -78.631579, -76.736842, -74.842105, -72.947368, -71.052632, -69.157895, -67.263158, -65.368421, -63.473684, -61.578947, -59.684211, -57.789474, -55.894737, -54. , -52.105263, -50.210526, -48.315789, -46.421053, -44.526316, -42.631579, -40.736842, -38.842105, -36.947368, -35.052632, -33.157895, -31.263158, -29.368421, -27.473684, -25.578947, -23.684211, -21.789474, -19.894737, -18. , -16.105263, -14.210526, -12.315789, -10.421053, -8.526316, -6.631579, -4.736842, -2.842105, -0.947368, 0.947368, 2.842105, 4.736842, 6.631579, 8.526316, 10.421053, 12.315789, 14.210526, 16.105263, 18. , 19.894737, 21.789474, 23.684211, 25.578947, 27.473684, 29.368421, 31.263158, 33.157895, 35.052632, 36.947368, 38.842105, 40.736842, 42.631579, 44.526316, 46.421053, 48.315789, 50.210526, 52.105263, 54. , 55.894737, 57.789474, 59.684211, 61.578947, 63.473684, 65.368421, 67.263158, 69.157895, 71.052632, 72.947368, 74.842105, 76.736842, 78.631579, 80.526316, 82.421053, 84.315789, 86.210526, 88.105263, 90. ])
- lon(lon)float640.0 2.5 5.0 ... 352.5 355.0 357.5
- long_name :
- longitude
- units :
- degrees_east
array([ 0. , 2.5, 5. , 7.5, 10. , 12.5, 15. , 17.5, 20. , 22.5, 25. , 27.5, 30. , 32.5, 35. , 37.5, 40. , 42.5, 45. , 47.5, 50. , 52.5, 55. , 57.5, 60. , 62.5, 65. , 67.5, 70. , 72.5, 75. , 77.5, 80. , 82.5, 85. , 87.5, 90. , 92.5, 95. , 97.5, 100. , 102.5, 105. , 107.5, 110. , 112.5, 115. , 117.5, 120. , 122.5, 125. , 127.5, 130. , 132.5, 135. , 137.5, 140. , 142.5, 145. , 147.5, 150. , 152.5, 155. , 157.5, 160. , 162.5, 165. , 167.5, 170. , 172.5, 175. , 177.5, 180. , 182.5, 185. , 187.5, 190. , 192.5, 195. , 197.5, 200. , 202.5, 205. , 207.5, 210. , 212.5, 215. , 217.5, 220. , 222.5, 225. , 227.5, 230. , 232.5, 235. , 237.5, 240. , 242.5, 245. , 247.5, 250. , 252.5, 255. , 257.5, 260. , 262.5, 265. , 267.5, 270. , 272.5, 275. , 277.5, 280. , 282.5, 285. , 287.5, 290. , 292.5, 295. , 297.5, 300. , 302.5, 305. , 307.5, 310. , 312.5, 315. , 317.5, 320. , 322.5, 325. , 327.5, 330. , 332.5, 335. , 337.5, 340. , 342.5, 345. , 347.5, 350. , 352.5, 355. , 357.5])
- units :
- km
Let’s make a plot! xarray
is able to automatically generate labeled plots. This is very handy for “quick and dirty” investigation of the data:
height.plot()
<matplotlib.collections.QuadMesh at 0x15f5ef3a0>

If we want more control over the appearance of the plot, we can use features of matplotlib
# A filled contour plot of topography with contours every 500 m
lev = np.arange(0., 6., 0.5)
fig1, ax1 = plt.subplots(figsize=(8,4))
# Here we are masking the data to exclude points where the land fraction is zero (water only)
cax1 = ax1.contourf( height.lon, height.lat,
height.where(topo.LANDFRAC>0), levels=lev)
ax1.set_title('Topography (km) and land-sea mask in CESM')
ax1.set_xlabel('Longitude')
ax1.set_ylabel('Latitude')
cbar1 = fig1.colorbar(cax1)

Note that at 2º resolution we can see many smaller features (e.g. Pacific islands). The model is given a fractional land cover for each grid point.
Here let’s plot the land-sea mask itself so we can see where there is at least “some” water:
fig2, ax2 = plt.subplots()
cax2 = ax2.pcolormesh( topo.lon, topo.lat, topo.LANDFRAC )
ax2.set_title('Ocean mask in CESM')
ax2.set_xlabel('Longitude'); ax2.set_ylabel('Latitude')
cbar2 = fig2.colorbar(cax2);
<ipython-input-8-8acbe0d1ed8a>:2: MatplotlibDeprecationWarning: shading='flat' when X and Y have the same dimensions as C is deprecated since 3.3. Either specify the corners of the quadrilaterals with X and Y, or pass shading='auto', 'nearest' or 'gouraud', or set rcParams['pcolor.shading']. This will become an error two minor releases later.
cax2 = ax2.pcolormesh( topo.lon, topo.lat, topo.LANDFRAC )

Making nicer maps#
Notice that to make these plots we’ve just plotted the lat-lon array without using any map projection.
There are nice tools available to make better maps. We’ll leave that as a topic for another day. But if you’re keen to read ahead, check out:
Ocean boundary conditions#
Let’s load another file that contains some information about the ocean and its interaction with the atmosphere.
som_input = xr.open_dataset( cesm_input_path + "pop_frc.1x1d.090130.nc")
som_input
<xarray.Dataset> Dimensions: (lat: 180, lon: 360, time: 12) Coordinates: * time (time) object 0001-01-15 00:00:00 ... 0001-12-16 00:00:00 Dimensions without coordinates: lat, lon Data variables: area (lat, lon) float64 0.0 0.0 0.0 0.0 0.0 0.0 ... 0.0 0.0 0.0 0.0 0.0 mask (lat, lon) int32 0 0 0 0 0 0 0 0 0 0 0 0 ... 1 1 1 1 1 1 1 1 1 1 1 yc (lat) float32 -89.5 -88.5 -87.5 -86.5 -85.5 ... 86.5 87.5 88.5 89.5 xc (lon) float32 0.5 1.5 2.5 3.5 4.5 ... 355.5 356.5 357.5 358.5 359.5 S (time, lat, lon) float32 ... T (time, lat, lon) float32 ... U (time, lat, lon) float32 ... V (time, lat, lon) float32 ... dhdx (time, lat, lon) float32 ... dhdy (time, lat, lon) float32 ... hblt (time, lat, lon) float32 ... qdp (time, lat, lon) float32 ... Attributes: creation_date: Fri Jan 30 10:22:53 MST 2009 comment: This data is on a standard 1x1d grid. calendar: standard author: D. Bailey note3: qdp is computed from depth summed ocean column note2: all fields interpolated to T-grid note1: fields computed from 20-yr monthly means from pop description: Input data for DOCN7 mixed layer model from b40.999 source: pop_frc.ncl conventions: CCSM data model domain description title: Monthly averaged ocean forcing from POP output
- lat: 180
- lon: 360
- time: 12
- time(time)object0001-01-15 00:00:00 ... 0001-12-...
- long_name :
- observation time
array([cftime.DatetimeNoLeap(1, 1, 15, 0, 0, 0, 0), cftime.DatetimeNoLeap(1, 2, 16, 0, 0, 0, 0), cftime.DatetimeNoLeap(1, 3, 16, 0, 0, 0, 0), cftime.DatetimeNoLeap(1, 4, 16, 0, 0, 0, 0), cftime.DatetimeNoLeap(1, 5, 16, 0, 0, 0, 0), cftime.DatetimeNoLeap(1, 6, 16, 0, 0, 0, 0), cftime.DatetimeNoLeap(1, 7, 16, 0, 0, 0, 0), cftime.DatetimeNoLeap(1, 8, 16, 0, 0, 0, 0), cftime.DatetimeNoLeap(1, 9, 16, 0, 0, 0, 0), cftime.DatetimeNoLeap(1, 10, 16, 0, 0, 0, 0), cftime.DatetimeNoLeap(1, 11, 16, 0, 0, 0, 0), cftime.DatetimeNoLeap(1, 12, 16, 0, 0, 0, 0)], dtype=object)
- area(lat, lon)float64...
- long_name :
- area of grid cell
array([[0., 0., 0., ..., 0., 0., 0.], [0., 0., 0., ..., 0., 0., 0.], [0., 0., 0., ..., 0., 0., 0.], ..., [0., 0., 0., ..., 0., 0., 0.], [0., 0., 0., ..., 0., 0., 0.], [0., 0., 0., ..., 0., 0., 0.]])
- mask(lat, lon)int32...
- long_name :
- land/ocean mask
array([[0, 0, 0, ..., 0, 0, 0], [0, 0, 0, ..., 0, 0, 0], [0, 0, 0, ..., 0, 0, 0], ..., [1, 1, 1, ..., 1, 1, 1], [1, 1, 1, ..., 1, 1, 1], [1, 1, 1, ..., 1, 1, 1]], dtype=int32)
- yc(lat)float32...
- long_name :
- Latitude
- units :
- degrees_north
array([-89.5, -88.5, -87.5, -86.5, -85.5, -84.5, -83.5, -82.5, -81.5, -80.5, -79.5, -78.5, -77.5, -76.5, -75.5, -74.5, -73.5, -72.5, -71.5, -70.5, -69.5, -68.5, -67.5, -66.5, -65.5, -64.5, -63.5, -62.5, -61.5, -60.5, -59.5, -58.5, -57.5, -56.5, -55.5, -54.5, -53.5, -52.5, -51.5, -50.5, -49.5, -48.5, -47.5, -46.5, -45.5, -44.5, -43.5, -42.5, -41.5, -40.5, -39.5, -38.5, -37.5, -36.5, -35.5, -34.5, -33.5, -32.5, -31.5, -30.5, -29.5, -28.5, -27.5, -26.5, -25.5, -24.5, -23.5, -22.5, -21.5, -20.5, -19.5, -18.5, -17.5, -16.5, -15.5, -14.5, -13.5, -12.5, -11.5, -10.5, -9.5, -8.5, -7.5, -6.5, -5.5, -4.5, -3.5, -2.5, -1.5, -0.5, 0.5, 1.5, 2.5, 3.5, 4.5, 5.5, 6.5, 7.5, 8.5, 9.5, 10.5, 11.5, 12.5, 13.5, 14.5, 15.5, 16.5, 17.5, 18.5, 19.5, 20.5, 21.5, 22.5, 23.5, 24.5, 25.5, 26.5, 27.5, 28.5, 29.5, 30.5, 31.5, 32.5, 33.5, 34.5, 35.5, 36.5, 37.5, 38.5, 39.5, 40.5, 41.5, 42.5, 43.5, 44.5, 45.5, 46.5, 47.5, 48.5, 49.5, 50.5, 51.5, 52.5, 53.5, 54.5, 55.5, 56.5, 57.5, 58.5, 59.5, 60.5, 61.5, 62.5, 63.5, 64.5, 65.5, 66.5, 67.5, 68.5, 69.5, 70.5, 71.5, 72.5, 73.5, 74.5, 75.5, 76.5, 77.5, 78.5, 79.5, 80.5, 81.5, 82.5, 83.5, 84.5, 85.5, 86.5, 87.5, 88.5, 89.5], dtype=float32)
- xc(lon)float32...
- long_name :
- Longitude
- units :
- degrees_east
array([ 0.5, 1.5, 2.5, ..., 357.5, 358.5, 359.5], dtype=float32)
- S(time, lat, lon)float32...
- units :
- ppt
- long_name :
- salinity
- spatial_op :
- Bilinear remapping: 1st order: destarea: NCL: ./map_gx1v5_to_1x1d_bilin_da_090109.nc
[777600 values with dtype=float32]
- T(time, lat, lon)float32...
- units :
- degC
- long_name :
- temperature
- spatial_op :
- Bilinear remapping: 1st order: destarea: NCL: ./map_gx1v5_to_1x1d_bilin_da_090109.nc
[777600 values with dtype=float32]
- U(time, lat, lon)float32...
- units :
- m/s
- long_name :
- u ocean current
- spatial_op :
- Bilinear remapping: 1st order: destarea: NCL: ./map_gx1v5_to_1x1d_bilin_da_090109.nc
[777600 values with dtype=float32]
- V(time, lat, lon)float32...
- units :
- m/s
- long_name :
- v ocean current
- spatial_op :
- Bilinear remapping: 1st order: destarea: NCL: ./map_gx1v5_to_1x1d_bilin_da_090109.nc
[777600 values with dtype=float32]
- dhdx(time, lat, lon)float32...
- units :
- m/m
- long_name :
- ocean surface slope: zonal
- spatial_op :
- Bilinear remapping: 1st order: destarea: NCL: ./map_gx1v5_to_1x1d_bilin_da_090109.nc
[777600 values with dtype=float32]
- dhdy(time, lat, lon)float32...
- units :
- m/m
- long_name :
- ocean surface slope: meridional
- spatial_op :
- Bilinear remapping: 1st order: destarea: NCL: ./map_gx1v5_to_1x1d_bilin_da_090109.nc
[777600 values with dtype=float32]
- hblt(time, lat, lon)float32...
- units :
- m
- long_name :
- boundary layer depth
- spatial_op :
- Bilinear remapping: 1st order: destarea: NCL: ./map_gx1v5_to_1x1d_bilin_da_090109.nc
[777600 values with dtype=float32]
- qdp(time, lat, lon)float32...
- spatial_op :
- Bilinear remapping: 1st order: destarea: NCL: ./map_gx1v5_to_1x1d_bilin_da_090109.nc
[777600 values with dtype=float32]
- creation_date :
- Fri Jan 30 10:22:53 MST 2009
- comment :
- This data is on a standard 1x1d grid.
- calendar :
- standard
- author :
- D. Bailey
- note3 :
- qdp is computed from depth summed ocean column
- note2 :
- all fields interpolated to T-grid
- note1 :
- fields computed from 20-yr monthly means from pop
- description :
- Input data for DOCN7 mixed layer model from b40.999
- source :
- pop_frc.ncl
- conventions :
- CCSM data model domain description
- title :
- Monthly averaged ocean forcing from POP output
The ocean / sea ice models exist on different grids than the atmosphere (1º instead of 2º resolution).
Now we are going to look at the annual mean heat flux out of the ocean.
It is stored in the field qdp
in the dataset we just opened.
The sign convention in CESM is that qdp > 0
where heat is going IN to the ocean. We will change the sign to plot heat going OUT of the ocean INTO the atmosphere (a more atmosphere-centric viewpoint).
som_input.qdp
<xarray.DataArray 'qdp' (time: 12, lat: 180, lon: 360)> [777600 values with dtype=float32] Coordinates: * time (time) object 0001-01-15 00:00:00 ... 0001-12-16 00:00:00 Dimensions without coordinates: lat, lon Attributes: spatial_op: Bilinear remapping: 1st order: destarea: NCL: ./map_gx1v5_to...
- time: 12
- lat: 180
- lon: 360
- ...
[777600 values with dtype=float32]
- time(time)object0001-01-15 00:00:00 ... 0001-12-...
- long_name :
- observation time
array([cftime.DatetimeNoLeap(1, 1, 15, 0, 0, 0, 0), cftime.DatetimeNoLeap(1, 2, 16, 0, 0, 0, 0), cftime.DatetimeNoLeap(1, 3, 16, 0, 0, 0, 0), cftime.DatetimeNoLeap(1, 4, 16, 0, 0, 0, 0), cftime.DatetimeNoLeap(1, 5, 16, 0, 0, 0, 0), cftime.DatetimeNoLeap(1, 6, 16, 0, 0, 0, 0), cftime.DatetimeNoLeap(1, 7, 16, 0, 0, 0, 0), cftime.DatetimeNoLeap(1, 8, 16, 0, 0, 0, 0), cftime.DatetimeNoLeap(1, 9, 16, 0, 0, 0, 0), cftime.DatetimeNoLeap(1, 10, 16, 0, 0, 0, 0), cftime.DatetimeNoLeap(1, 11, 16, 0, 0, 0, 0), cftime.DatetimeNoLeap(1, 12, 16, 0, 0, 0, 0)], dtype=object)
- spatial_op :
- Bilinear remapping: 1st order: destarea: NCL: ./map_gx1v5_to_1x1d_bilin_da_090109.nc
Unfortunately, here is a case in which the metadata are not very useful. There is no text description of what variable qdp
actually is, or what its units are. (It is actually in units of W m\(^{-2}\))
We can see that there are 12 x 180 x 360 data points. One 180 x 360 grid for each calendar month!
Now we are going to take the average over the year at each point.
We will use the power of xarray
here to take the average over the time dimension, leaving us with a single grid on 180 latitude points by 360 longitude points:
(-som_input.qdp.mean(dim='time')).plot()
<matplotlib.collections.QuadMesh at 0x15f930a90>

Now make a nice plot of the annual mean q-flux.
# We can always set a non-standard size for our figure window
fig3, ax3 = plt.subplots(figsize=(10, 6))
lev = np.arange(-700., 750., 50.)
cax3 = ax3.contourf(som_input.xc, som_input.yc,
-som_input.qdp.mean(dim='time'),
levels=lev, cmap=plt.cm.bwr)
cbar3 = fig3.colorbar(cax3)
ax3.set_title( 'CESM: Prescribed heat flux out of ocean (W m$^{-2}$), annual mean',
fontsize=14 )
ax3.set_xlabel('Longitude', fontsize=14)
ax3.set_ylabel('Latitude', fontsize=14)
ax3.text(65, 50, 'Annual', fontsize=16 )
ax3.contour(topo.lon, topo.lat, topo.LANDFRAC, levels=[0.5], colors='k');

Notice all the spatial structure here:
Lots of heat is going in to the oceans at the equator, particularly in the eastern Pacific Ocean.
The red hot spots show where lots of heat is coming out of the ocean.
Hot spots include the mid-latitudes off the eastern coasts of Asia and North America
And also the northern North Atlantic.
All this structure is determined by ocean circulation, which we are not modeling here. Instead, we are prescribing these heat flux patterns as an input to the atmosphere.
This pattern changes throughout the year. Recall that we just averaged over all months to make this plot. We might want to look at just one month:
# select by month index (0 through 11)
som_input.qdp.isel(time=0)
<xarray.DataArray 'qdp' (lat: 180, lon: 360)> array([[ nan, nan, nan, ..., nan, nan, nan], [ nan, nan, nan, ..., nan, nan, nan], [ nan, nan, nan, ..., nan, nan, nan], ..., [-5.75126 , -5.742314, -5.734764, ..., -5.792866, -5.774798, -5.761612], [-5.533446, -5.537023, -5.540624, ..., -5.522859, -5.526363, -5.529893], [-5.31631 , -5.314115, -5.311888, ..., -5.322703, -5.320605, -5.318473]], dtype=float32) Coordinates: time object 0001-01-15 00:00:00 Dimensions without coordinates: lat, lon Attributes: spatial_op: Bilinear remapping: 1st order: destarea: NCL: ./map_gx1v5_to...
- lat: 180
- lon: 360
- nan nan nan nan nan nan ... -5.329 -5.327 -5.325 -5.323 -5.321 -5.318
array([[ nan, nan, nan, ..., nan, nan, nan], [ nan, nan, nan, ..., nan, nan, nan], [ nan, nan, nan, ..., nan, nan, nan], ..., [-5.75126 , -5.742314, -5.734764, ..., -5.792866, -5.774798, -5.761612], [-5.533446, -5.537023, -5.540624, ..., -5.522859, -5.526363, -5.529893], [-5.31631 , -5.314115, -5.311888, ..., -5.322703, -5.320605, -5.318473]], dtype=float32)
- time()object0001-01-15 00:00:00
- long_name :
- observation time
array(cftime.DatetimeNoLeap(1, 1, 15, 0, 0, 0, 0), dtype=object)
- spatial_op :
- Bilinear remapping: 1st order: destarea: NCL: ./map_gx1v5_to_1x1d_bilin_da_090109.nc
# select by array slicing (but for this you have to know the axis order!)
som_input.qdp[0,:,:]
<xarray.DataArray 'qdp' (lat: 180, lon: 360)> array([[ nan, nan, nan, ..., nan, nan, nan], [ nan, nan, nan, ..., nan, nan, nan], [ nan, nan, nan, ..., nan, nan, nan], ..., [-5.75126 , -5.742314, -5.734764, ..., -5.792866, -5.774798, -5.761612], [-5.533446, -5.537023, -5.540624, ..., -5.522859, -5.526363, -5.529893], [-5.31631 , -5.314115, -5.311888, ..., -5.322703, -5.320605, -5.318473]], dtype=float32) Coordinates: time object 0001-01-15 00:00:00 Dimensions without coordinates: lat, lon Attributes: spatial_op: Bilinear remapping: 1st order: destarea: NCL: ./map_gx1v5_to...
- lat: 180
- lon: 360
- nan nan nan nan nan nan ... -5.329 -5.327 -5.325 -5.323 -5.321 -5.318
array([[ nan, nan, nan, ..., nan, nan, nan], [ nan, nan, nan, ..., nan, nan, nan], [ nan, nan, nan, ..., nan, nan, nan], ..., [-5.75126 , -5.742314, -5.734764, ..., -5.792866, -5.774798, -5.761612], [-5.533446, -5.537023, -5.540624, ..., -5.522859, -5.526363, -5.529893], [-5.31631 , -5.314115, -5.311888, ..., -5.322703, -5.320605, -5.318473]], dtype=float32)
- time()object0001-01-15 00:00:00
- long_name :
- observation time
array(cftime.DatetimeNoLeap(1, 1, 15, 0, 0, 0, 0), dtype=object)
- spatial_op :
- Bilinear remapping: 1st order: destarea: NCL: ./map_gx1v5_to_1x1d_bilin_da_090109.nc
Here we got just the first month (January) by specifying [0,:,:]
after the variable name. This is called slicing or indexing an array. We are saying “give me everything for month number 0”. Now make the plot:
fig4, ax4 = plt.subplots(figsize=(10,4))
cax4 = ax4.contourf( som_input.xc, som_input.yc,
-som_input.qdp.isel(time=0),
levels=lev, cmap=plt.cm.bwr)
cbar4 = plt.colorbar(cax4)
ax4.set_title( 'CESM: Prescribed heat flux out of ocean (W m$^{-2}$)',
fontsize=14 )
ax3.set_xlabel('Longitude', fontsize=14)
ax3.set_ylabel('Latitude', fontsize=14)
ax4.text(65, 50, 'January', fontsize=12 );
ax4.contour(topo.lon, topo.lat, topo.LANDFRAC, levels=[0.5], colors='k');

For lots more help with using xarray to slice and dice your dataset, look at the online documentation:
The “pre-industrial” control run#
Our control run is set up to simulate the climate of the “pre-industrial era”, meaning before significant human-induced changes to the composition of the atmosphere, nominally the year 1850.
Output from the control run is available on the same data server as above. Look in the folder called cpl_1850_f19
(Here cpl
stands for “coupled model” with interactive ocean, 1850 indicated pre-industrial conditions, and f19
is a code for 2º the horizontal grid resolution).
There are output files for each active model component:
atmosphere
ocean
sea ice
land surface
The model produces monthly average output files for each component. We can load datasets from individual months, but there are also large concatenated files available that contain the entire output.
Let’s take a look at the atmosphere file. The file is called
cpl_1850_f19.cam.h0.nc
(the file extension .nc
is used to indicate NetCDF format).
atm_control = xr.open_dataset(cesm_data_path + "cpl_1850_f19/concatenated/cpl_1850_f19.cam.h0.nc")
atm_control
<xarray.Dataset> Dimensions: (ilev: 27, lat: 96, lev: 26, lon: 144, nbnd: 2, slat: 95, slon: 144, time: 240) Coordinates: * lev (lev) float64 3.545 7.389 13.97 23.94 ... 929.6 970.6 992.6 * ilev (ilev) float64 2.194 4.895 9.882 18.05 ... 956.0 985.1 1e+03 * time (time) object 0001-02-01 00:00:00 ... 0021-01-01 00:00:00 * lat (lat) float64 -90.0 -88.11 -86.21 -84.32 ... 86.21 88.11 90.0 * lon (lon) float64 0.0 2.5 5.0 7.5 10.0 ... 350.0 352.5 355.0 357.5 * slat (slat) float64 -89.05 -87.16 -85.26 ... 85.26 87.16 89.05 * slon (slon) float64 -1.25 1.25 3.75 6.25 ... 351.2 353.8 356.2 Dimensions without coordinates: nbnd Data variables: (12/128) hyam (lev) float64 0.003545 0.007389 0.01397 ... 0.001261 0.0 hybm (lev) float64 0.0 0.0 0.0 0.0 ... 0.8569 0.9248 0.9693 0.9926 hyai (ilev) float64 0.002194 0.004895 0.009882 ... 0.002521 0.0 0.0 hybi (ilev) float64 0.0 0.0 0.0 0.0 ... 0.8962 0.9535 0.9851 1.0 P0 float64 1e+05 date (time) int32 10201 10301 10401 10501 ... 201101 201201 210101 ... ... VTH3d (time, ilev, lat, lon) float32 ... VU (time, lev, lat, lon) float32 ... VV (time, lev, lat, lon) float32 ... W2d (time, lat, lon) float32 ... WTH3d (time, ilev, lat, lon) float32 ... Z3 (time, lev, lat, lon) float32 ... Attributes: (12/16) Conventions: CF-1.0 source: CAM case: cpl_1850_f19 title: UNSET logname: br546577 host: snow-30.rit.alba ... ... history: Tue Feb 26 17:17:15 2019: ncrcat atm/his... NCO: 4.6.8 nco_openmp_thread_number: 1 DODS.strlen: 8 DODS.dimName: chars DODS_EXTRA.Unlimited_Dimension: time
- ilev: 27
- lat: 96
- lev: 26
- lon: 144
- nbnd: 2
- slat: 95
- slon: 144
- time: 240
- lev(lev)float643.545 7.389 13.97 ... 970.6 992.6
- long_name :
- hybrid level at midpoints (1000*(A+B))
- units :
- level
- positive :
- down
- standard_name :
- atmosphere_hybrid_sigma_pressure_coordinate
- formula_terms :
- a: hyam b: hybm p0: P0 ps: PS
array([ 3.544638, 7.388814, 13.967214, 23.944625, 37.23029 , 53.114605, 70.05915 , 85.439115, 100.514695, 118.250335, 139.115395, 163.66207 , 192.539935, 226.513265, 266.481155, 313.501265, 368.81798 , 433.895225, 510.455255, 600.5242 , 696.79629 , 787.70206 , 867.16076 , 929.648875, 970.55483 , 992.5561 ])
- ilev(ilev)float642.194 4.895 9.882 ... 985.1 1e+03
- long_name :
- hybrid level at interfaces (1000*(A+B))
- units :
- level
- positive :
- down
- standard_name :
- atmosphere_hybrid_sigma_pressure_coordinate
- formula_terms :
- a: hyai b: hybi p0: P0 ps: PS
array([ 2.194067, 4.895209, 9.882418, 18.05201 , 29.83724 , 44.62334 , 61.60587 , 78.51243 , 92.3658 , 108.66359 , 127.83708 , 150.39371 , 176.93043 , 208.14944 , 244.87709 , 288.08522 , 338.91731 , 398.71865 , 469.0718 , 551.83871 , 649.20969 , 744.38289 , 831.02123 , 903.30029 , 955.99746 , 985.1122 , 1000. ])
- time(time)object0001-02-01 00:00:00 ... 0021-01-...
- long_name :
- time
- bounds :
- time_bnds
array([cftime.DatetimeNoLeap(1, 2, 1, 0, 0, 0, 0), cftime.DatetimeNoLeap(1, 3, 1, 0, 0, 0, 0), cftime.DatetimeNoLeap(1, 4, 1, 0, 0, 0, 0), ..., cftime.DatetimeNoLeap(20, 11, 1, 0, 0, 0, 0), cftime.DatetimeNoLeap(20, 12, 1, 0, 0, 0, 0), cftime.DatetimeNoLeap(21, 1, 1, 0, 0, 0, 0)], dtype=object)
- lat(lat)float64-90.0 -88.11 -86.21 ... 88.11 90.0
- long_name :
- latitude
- units :
- degrees_north
array([-90. , -88.105263, -86.210526, -84.315789, -82.421053, -80.526316, -78.631579, -76.736842, -74.842105, -72.947368, -71.052632, -69.157895, -67.263158, -65.368421, -63.473684, -61.578947, -59.684211, -57.789474, -55.894737, -54. , -52.105263, -50.210526, -48.315789, -46.421053, -44.526316, -42.631579, -40.736842, -38.842105, -36.947368, -35.052632, -33.157895, -31.263158, -29.368421, -27.473684, -25.578947, -23.684211, -21.789474, -19.894737, -18. , -16.105263, -14.210526, -12.315789, -10.421053, -8.526316, -6.631579, -4.736842, -2.842105, -0.947368, 0.947368, 2.842105, 4.736842, 6.631579, 8.526316, 10.421053, 12.315789, 14.210526, 16.105263, 18. , 19.894737, 21.789474, 23.684211, 25.578947, 27.473684, 29.368421, 31.263158, 33.157895, 35.052632, 36.947368, 38.842105, 40.736842, 42.631579, 44.526316, 46.421053, 48.315789, 50.210526, 52.105263, 54. , 55.894737, 57.789474, 59.684211, 61.578947, 63.473684, 65.368421, 67.263158, 69.157895, 71.052632, 72.947368, 74.842105, 76.736842, 78.631579, 80.526316, 82.421053, 84.315789, 86.210526, 88.105263, 90. ])
- lon(lon)float640.0 2.5 5.0 ... 352.5 355.0 357.5
- long_name :
- longitude
- units :
- degrees_east
array([ 0. , 2.5, 5. , 7.5, 10. , 12.5, 15. , 17.5, 20. , 22.5, 25. , 27.5, 30. , 32.5, 35. , 37.5, 40. , 42.5, 45. , 47.5, 50. , 52.5, 55. , 57.5, 60. , 62.5, 65. , 67.5, 70. , 72.5, 75. , 77.5, 80. , 82.5, 85. , 87.5, 90. , 92.5, 95. , 97.5, 100. , 102.5, 105. , 107.5, 110. , 112.5, 115. , 117.5, 120. , 122.5, 125. , 127.5, 130. , 132.5, 135. , 137.5, 140. , 142.5, 145. , 147.5, 150. , 152.5, 155. , 157.5, 160. , 162.5, 165. , 167.5, 170. , 172.5, 175. , 177.5, 180. , 182.5, 185. , 187.5, 190. , 192.5, 195. , 197.5, 200. , 202.5, 205. , 207.5, 210. , 212.5, 215. , 217.5, 220. , 222.5, 225. , 227.5, 230. , 232.5, 235. , 237.5, 240. , 242.5, 245. , 247.5, 250. , 252.5, 255. , 257.5, 260. , 262.5, 265. , 267.5, 270. , 272.5, 275. , 277.5, 280. , 282.5, 285. , 287.5, 290. , 292.5, 295. , 297.5, 300. , 302.5, 305. , 307.5, 310. , 312.5, 315. , 317.5, 320. , 322.5, 325. , 327.5, 330. , 332.5, 335. , 337.5, 340. , 342.5, 345. , 347.5, 350. , 352.5, 355. , 357.5])
- slat(slat)float64-89.05 -87.16 ... 87.16 89.05
- long_name :
- staggered latitude
- units :
- degrees_north
array([-89.052632, -87.157895, -85.263158, -83.368421, -81.473684, -79.578947, -77.684211, -75.789474, -73.894737, -72. , -70.105263, -68.210526, -66.315789, -64.421053, -62.526316, -60.631579, -58.736842, -56.842105, -54.947368, -53.052632, -51.157895, -49.263158, -47.368421, -45.473684, -43.578947, -41.684211, -39.789474, -37.894737, -36. , -34.105263, -32.210526, -30.315789, -28.421053, -26.526316, -24.631579, -22.736842, -20.842105, -18.947368, -17.052632, -15.157895, -13.263158, -11.368421, -9.473684, -7.578947, -5.684211, -3.789474, -1.894737, 0. , 1.894737, 3.789474, 5.684211, 7.578947, 9.473684, 11.368421, 13.263158, 15.157895, 17.052632, 18.947368, 20.842105, 22.736842, 24.631579, 26.526316, 28.421053, 30.315789, 32.210526, 34.105263, 36. , 37.894737, 39.789474, 41.684211, 43.578947, 45.473684, 47.368421, 49.263158, 51.157895, 53.052632, 54.947368, 56.842105, 58.736842, 60.631579, 62.526316, 64.421053, 66.315789, 68.210526, 70.105263, 72. , 73.894737, 75.789474, 77.684211, 79.578947, 81.473684, 83.368421, 85.263158, 87.157895, 89.052632])
- slon(slon)float64-1.25 1.25 3.75 ... 353.8 356.2
- long_name :
- staggered longitude
- units :
- degrees_east
array([ -1.25, 1.25, 3.75, 6.25, 8.75, 11.25, 13.75, 16.25, 18.75, 21.25, 23.75, 26.25, 28.75, 31.25, 33.75, 36.25, 38.75, 41.25, 43.75, 46.25, 48.75, 51.25, 53.75, 56.25, 58.75, 61.25, 63.75, 66.25, 68.75, 71.25, 73.75, 76.25, 78.75, 81.25, 83.75, 86.25, 88.75, 91.25, 93.75, 96.25, 98.75, 101.25, 103.75, 106.25, 108.75, 111.25, 113.75, 116.25, 118.75, 121.25, 123.75, 126.25, 128.75, 131.25, 133.75, 136.25, 138.75, 141.25, 143.75, 146.25, 148.75, 151.25, 153.75, 156.25, 158.75, 161.25, 163.75, 166.25, 168.75, 171.25, 173.75, 176.25, 178.75, 181.25, 183.75, 186.25, 188.75, 191.25, 193.75, 196.25, 198.75, 201.25, 203.75, 206.25, 208.75, 211.25, 213.75, 216.25, 218.75, 221.25, 223.75, 226.25, 228.75, 231.25, 233.75, 236.25, 238.75, 241.25, 243.75, 246.25, 248.75, 251.25, 253.75, 256.25, 258.75, 261.25, 263.75, 266.25, 268.75, 271.25, 273.75, 276.25, 278.75, 281.25, 283.75, 286.25, 288.75, 291.25, 293.75, 296.25, 298.75, 301.25, 303.75, 306.25, 308.75, 311.25, 313.75, 316.25, 318.75, 321.25, 323.75, 326.25, 328.75, 331.25, 333.75, 336.25, 338.75, 341.25, 343.75, 346.25, 348.75, 351.25, 353.75, 356.25])
- hyam(lev)float64...
- long_name :
- hybrid A coefficient at layer midpoints
array([0.003545, 0.007389, 0.013967, 0.023945, 0.03723 , 0.053115, 0.070059, 0.077913, 0.076607, 0.075071, 0.073264, 0.071138, 0.068638, 0.065695, 0.062234, 0.058162, 0.053372, 0.047736, 0.041106, 0.033306, 0.024968, 0.017096, 0.010215, 0.004803, 0.001261, 0. ])
- hybm(lev)float64...
- long_name :
- hybrid B coefficient at layer midpoints
array([0. , 0. , 0. , 0. , 0. , 0. , 0. , 0.007527, 0.023908, 0.043179, 0.065851, 0.092524, 0.123902, 0.160818, 0.204247, 0.255339, 0.315446, 0.386159, 0.46935 , 0.567219, 0.671828, 0.770606, 0.856946, 0.924846, 0.969294, 0.992556])
- hyai(ilev)float64...
- long_name :
- hybrid A coefficient at layer interfaces
array([0.002194, 0.004895, 0.009882, 0.018052, 0.029837, 0.044623, 0.061606, 0.078512, 0.077313, 0.075901, 0.074241, 0.072287, 0.069989, 0.067286, 0.064105, 0.060363, 0.055961, 0.050782, 0.04469 , 0.037522, 0.029089, 0.020847, 0.013344, 0.007085, 0.002521, 0. , 0. ])
- hybi(ilev)float64...
- long_name :
- hybrid B coefficient at layer interfaces
array([0. , 0. , 0. , 0. , 0. , 0. , 0. , 0. , 0.015053, 0.032762, 0.053596, 0.078106, 0.106941, 0.140864, 0.180772, 0.227722, 0.282956, 0.347936, 0.424382, 0.514317, 0.62012 , 0.723536, 0.817677, 0.896215, 0.953476, 0.985112, 1. ])
- P0()float64...
- long_name :
- reference pressure
- units :
- Pa
array(100000.)
- date(time)int32...
- long_name :
- current date (YYYYMMDD)
array([ 10201, 10301, 10401, ..., 201101, 201201, 210101], dtype=int32)
- datesec(time)int32...
- long_name :
- current seconds of current date
array([0, 0, 0, ..., 0, 0, 0], dtype=int32)
- w_stag(slat)float64...
- long_name :
- staggered latitude weights
array([0.000547, 0.00164 , 0.002731, 0.003819, 0.004903, 0.005981, 0.007053, 0.008118, 0.009173, 0.010219, 0.011253, 0.012275, 0.013283, 0.014277, 0.015256, 0.016217, 0.017161, 0.018086, 0.018992, 0.019876, 0.020739, 0.02158 , 0.022396, 0.023188, 0.023955, 0.024696, 0.025409, 0.026095, 0.026752, 0.027381, 0.027979, 0.028546, 0.029082, 0.029587, 0.030059, 0.030498, 0.030904, 0.031276, 0.031614, 0.031917, 0.032186, 0.032419, 0.032617, 0.032779, 0.032905, 0.032996, 0.03305 , 0.033068, 0.03305 , 0.032996, 0.032905, 0.032779, 0.032617, 0.032419, 0.032186, 0.031917, 0.031614, 0.031276, 0.030904, 0.030498, 0.030059, 0.029587, 0.029082, 0.028546, 0.027979, 0.027381, 0.026752, 0.026095, 0.025409, 0.024696, 0.023955, 0.023188, 0.022396, 0.02158 , 0.020739, 0.019876, 0.018992, 0.018086, 0.017161, 0.016217, 0.015256, 0.014277, 0.013283, 0.012275, 0.011253, 0.010219, 0.009173, 0.008118, 0.007053, 0.005981, 0.004903, 0.003819, 0.002731, 0.00164 , 0.000547])
- time_bnds(time, nbnd)object...
- long_name :
- time interval endpoints
array([[cftime.DatetimeNoLeap(1, 1, 1, 0, 0, 0, 0), cftime.DatetimeNoLeap(1, 2, 1, 0, 0, 0, 0)], [cftime.DatetimeNoLeap(1, 2, 1, 0, 0, 0, 0), cftime.DatetimeNoLeap(1, 3, 1, 0, 0, 0, 0)], [cftime.DatetimeNoLeap(1, 3, 1, 0, 0, 0, 0), cftime.DatetimeNoLeap(1, 4, 1, 0, 0, 0, 0)], ..., [cftime.DatetimeNoLeap(20, 10, 1, 0, 0, 0, 0), cftime.DatetimeNoLeap(20, 11, 1, 0, 0, 0, 0)], [cftime.DatetimeNoLeap(20, 11, 1, 0, 0, 0, 0), cftime.DatetimeNoLeap(20, 12, 1, 0, 0, 0, 0)], [cftime.DatetimeNoLeap(20, 12, 1, 0, 0, 0, 0), cftime.DatetimeNoLeap(21, 1, 1, 0, 0, 0, 0)]], dtype=object)
- date_written(time)|S64...
array([b'02/26/19', b'02/26/19', b'02/26/19', ..., b'02/26/19', b'02/26/19', b'02/26/19'], dtype='|S64')
- time_written(time)|S64...
array([b'17:17:15', b'17:17:16', b'17:17:17', ..., b'17:22:08', b'17:22:09', b'17:22:09'], dtype='|S64')
- ntrm()int32...
- long_name :
- spectral truncation parameter M
array(1, dtype=int32)
- ntrn()int32...
- long_name :
- spectral truncation parameter N
array(1, dtype=int32)
- ntrk()int32...
- long_name :
- spectral truncation parameter K
array(1, dtype=int32)
- ndbase()int32...
- long_name :
- base day
array(0, dtype=int32)
- nsbase()int32...
- long_name :
- seconds of base day
array(0, dtype=int32)
- nbdate()int32...
- long_name :
- base date (YYYYMMDD)
array(10101, dtype=int32)
- nbsec()int32...
- long_name :
- seconds of base date
array(0, dtype=int32)
- mdt()int32...
- long_name :
- timestep
- units :
- s
array(1800, dtype=int32)
- nlon(lat)int32...
- long_name :
- number of longitudes
array([144, 144, 144, 144, 144, 144, 144, 144, 144, 144, 144, 144, 144, 144, 144, 144, 144, 144, 144, 144, 144, 144, 144, 144, 144, 144, 144, 144, 144, 144, 144, 144, 144, 144, 144, 144, 144, 144, 144, 144, 144, 144, 144, 144, 144, 144, 144, 144, 144, 144, 144, 144, 144, 144, 144, 144, 144, 144, 144, 144, 144, 144, 144, 144, 144, 144, 144, 144, 144, 144, 144, 144, 144, 144, 144, 144, 144, 144, 144, 144, 144, 144, 144, 144, 144, 144, 144, 144, 144, 144, 144, 144, 144, 144, 144, 144], dtype=int32)
- wnummax(lat)int32...
- long_name :
- cutoff Fourier wavenumber
array([1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1], dtype=int32)
- gw(lat)float64...
- long_name :
- gauss weights
array([0.000137, 0.001093, 0.002185, 0.003275, 0.004361, 0.005443, 0.006518, 0.007587, 0.008647, 0.009697, 0.010737, 0.011765, 0.012781, 0.013782, 0.014768, 0.015739, 0.016692, 0.017626, 0.018542, 0.019437, 0.020311, 0.021162, 0.021991, 0.022795, 0.023575, 0.024329, 0.025056, 0.025756, 0.026427, 0.02707 , 0.027683, 0.028266, 0.028818, 0.029339, 0.029827, 0.030283, 0.030705, 0.031094, 0.031449, 0.03177 , 0.032056, 0.032307, 0.032522, 0.032702, 0.032847, 0.032955, 0.033027, 0.033063, 0.033063, 0.033027, 0.032955, 0.032847, 0.032702, 0.032522, 0.032307, 0.032056, 0.03177 , 0.031449, 0.031094, 0.030705, 0.030283, 0.029827, 0.029339, 0.028818, 0.028266, 0.027683, 0.02707 , 0.026427, 0.025756, 0.025056, 0.024329, 0.023575, 0.022795, 0.021991, 0.021162, 0.020311, 0.019437, 0.018542, 0.017626, 0.016692, 0.015739, 0.014768, 0.013782, 0.012781, 0.011765, 0.010737, 0.009697, 0.008647, 0.007587, 0.006518, 0.005443, 0.004361, 0.003275, 0.002185, 0.001093, 0.000137])
- ndcur(time)int32...
- long_name :
- current day (from base day)
array([ 31, 59, 90, ..., 7239, 7269, 7300], dtype=int32)
- nscur(time)int32...
- long_name :
- current seconds of current day
array([0, 0, 0, ..., 0, 0, 0], dtype=int32)
- co2vmr(time)float64...
- long_name :
- co2 volume mixing ratio
array([0.000285, 0.000285, 0.000285, ..., 0.000285, 0.000285, 0.000285])
- ch4vmr(time)float64...
- long_name :
- ch4 volume mixing ratio
array([7.916e-07, 7.916e-07, 7.916e-07, ..., 7.916e-07, 7.916e-07, 7.916e-07])
- n2ovmr(time)float64...
- long_name :
- n2o volume mixing ratio
array([2.7568e-07, 2.7568e-07, 2.7568e-07, ..., 2.7568e-07, 2.7568e-07, 2.7568e-07])
- f11vmr(time)float64...
- long_name :
- f11 volume mixing ratio
array([1.248e-11, 1.248e-11, 1.248e-11, ..., 1.248e-11, 1.248e-11, 1.248e-11])
- f12vmr(time)float64...
- long_name :
- f12 volume mixing ratio
array([0., 0., 0., ..., 0., 0., 0.])
- sol_tsi(time)float64...
- long_name :
- total solar irradiance
- units :
- W/m2
array([1360.89, 1360.89, 1360.89, ..., 1360.89, 1360.89, 1360.89])
- nsteph(time)int32...
- long_name :
- current timestep
array([ 1488, 2832, 4320, ..., 347472, 348912, 350400], dtype=int32)
- AEROD_v(time, lat, lon)float32...
- units :
- 1
- long_name :
- Total Aerosol Optical Depth in visible band
- cell_methods :
- time: mean
[3317760 values with dtype=float32]
- CLDHGH(time, lat, lon)float32...
- Sampling_Sequence :
- rad_lwsw
- units :
- fraction
- long_name :
- Vertically-integrated high cloud
- cell_methods :
- time: mean
[3317760 values with dtype=float32]
- CLDICE(time, lev, lat, lon)float32...
- mdims :
- 1
- units :
- kg/kg
- long_name :
- Grid box averaged cloud ice amount
- cell_methods :
- time: mean
[86261760 values with dtype=float32]
- CLDLIQ(time, lev, lat, lon)float32...
- mdims :
- 1
- units :
- kg/kg
- long_name :
- Grid box averaged cloud liquid amount
- cell_methods :
- time: mean
[86261760 values with dtype=float32]
- CLDLOW(time, lat, lon)float32...
- Sampling_Sequence :
- rad_lwsw
- units :
- fraction
- long_name :
- Vertically-integrated low cloud
- cell_methods :
- time: mean
[3317760 values with dtype=float32]
- CLDMED(time, lat, lon)float32...
- Sampling_Sequence :
- rad_lwsw
- units :
- fraction
- long_name :
- Vertically-integrated mid-level cloud
- cell_methods :
- time: mean
[3317760 values with dtype=float32]
- CLDTOT(time, lat, lon)float32...
- Sampling_Sequence :
- rad_lwsw
- units :
- fraction
- long_name :
- Vertically-integrated total cloud
- cell_methods :
- time: mean
[3317760 values with dtype=float32]
- CLOUD(time, lev, lat, lon)float32...
- mdims :
- 1
- Sampling_Sequence :
- rad_lwsw
- units :
- fraction
- long_name :
- Cloud fraction
- cell_methods :
- time: mean
[86261760 values with dtype=float32]
- CONCLD(time, lev, lat, lon)float32...
- mdims :
- 1
- units :
- fraction
- long_name :
- Convective cloud cover
- cell_methods :
- time: mean
[86261760 values with dtype=float32]
- DCQ(time, lev, lat, lon)float32...
- mdims :
- 1
- units :
- kg/kg/s
- long_name :
- Q tendency due to moist processes
- cell_methods :
- time: mean
[86261760 values with dtype=float32]
- DTCOND(time, lev, lat, lon)float32...
- mdims :
- 1
- units :
- K/s
- long_name :
- T tendency - moist processes
- cell_methods :
- time: mean
[86261760 values with dtype=float32]
- DTV(time, lev, lat, lon)float32...
- mdims :
- 1
- units :
- K/s
- long_name :
- T vertical diffusion
- cell_methods :
- time: mean
[86261760 values with dtype=float32]
- EMIS(time, lev, lat, lon)float32...
- mdims :
- 1
- Sampling_Sequence :
- rad_lwsw
- units :
- 1
- long_name :
- cloud emissivity
- cell_methods :
- time: mean
[86261760 values with dtype=float32]
- FICE(time, lev, lat, lon)float32...
- mdims :
- 1
- units :
- fraction
- long_name :
- Fractional ice content within cloud
- cell_methods :
- time: mean
[86261760 values with dtype=float32]
- FLDS(time, lat, lon)float32...
- Sampling_Sequence :
- rad_lwsw
- units :
- W/m2
- long_name :
- Downwelling longwave flux at surface
- cell_methods :
- time: mean
[3317760 values with dtype=float32]
- FLDSC(time, lat, lon)float32...
- Sampling_Sequence :
- rad_lwsw
- units :
- W/m2
- long_name :
- Clearsky downwelling longwave flux at surface
- cell_methods :
- time: mean
[3317760 values with dtype=float32]
- FLNS(time, lat, lon)float32...
- Sampling_Sequence :
- rad_lwsw
- units :
- W/m2
- long_name :
- Net longwave flux at surface
- cell_methods :
- time: mean
[3317760 values with dtype=float32]
- FLNSC(time, lat, lon)float32...
- Sampling_Sequence :
- rad_lwsw
- units :
- W/m2
- long_name :
- Clearsky net longwave flux at surface
- cell_methods :
- time: mean
[3317760 values with dtype=float32]
- FLNT(time, lat, lon)float32...
- Sampling_Sequence :
- rad_lwsw
- units :
- W/m2
- long_name :
- Net longwave flux at top of model
- cell_methods :
- time: mean
[3317760 values with dtype=float32]
- FLNTC(time, lat, lon)float32...
- Sampling_Sequence :
- rad_lwsw
- units :
- W/m2
- long_name :
- Clearsky net longwave flux at top of model
- cell_methods :
- time: mean
[3317760 values with dtype=float32]
- FLUT(time, lat, lon)float32...
- Sampling_Sequence :
- rad_lwsw
- units :
- W/m2
- long_name :
- Upwelling longwave flux at top of model
- cell_methods :
- time: mean
[3317760 values with dtype=float32]
- FLUTC(time, lat, lon)float32...
- Sampling_Sequence :
- rad_lwsw
- units :
- W/m2
- long_name :
- Clearsky upwelling longwave flux at top of model
- cell_methods :
- time: mean
[3317760 values with dtype=float32]
- FSDS(time, lat, lon)float32...
- Sampling_Sequence :
- rad_lwsw
- units :
- W/m2
- long_name :
- Downwelling solar flux at surface
- cell_methods :
- time: mean
[3317760 values with dtype=float32]
- FSDSC(time, lat, lon)float32...
- Sampling_Sequence :
- rad_lwsw
- units :
- W/m2
- long_name :
- Clearsky downwelling solar flux at surface
- cell_methods :
- time: mean
[3317760 values with dtype=float32]
- FSDTOA(time, lat, lon)float32...
- Sampling_Sequence :
- rad_lwsw
- units :
- W/m2
- long_name :
- Downwelling solar flux at top of atmosphere
- cell_methods :
- time: mean
[3317760 values with dtype=float32]
- FSNS(time, lat, lon)float32...
- Sampling_Sequence :
- rad_lwsw
- units :
- W/m2
- long_name :
- Net solar flux at surface
- cell_methods :
- time: mean
[3317760 values with dtype=float32]
- FSNSC(time, lat, lon)float32...
- Sampling_Sequence :
- rad_lwsw
- units :
- W/m2
- long_name :
- Clearsky net solar flux at surface
- cell_methods :
- time: mean
[3317760 values with dtype=float32]
- FSNT(time, lat, lon)float32...
- Sampling_Sequence :
- rad_lwsw
- units :
- W/m2
- long_name :
- Net solar flux at top of model
- cell_methods :
- time: mean
[3317760 values with dtype=float32]
- FSNTC(time, lat, lon)float32...
- Sampling_Sequence :
- rad_lwsw
- units :
- W/m2
- long_name :
- Clearsky net solar flux at top of model
- cell_methods :
- time: mean
[3317760 values with dtype=float32]
- FSNTOA(time, lat, lon)float32...
- Sampling_Sequence :
- rad_lwsw
- units :
- W/m2
- long_name :
- Net solar flux at top of atmosphere
- cell_methods :
- time: mean
[3317760 values with dtype=float32]
- FSNTOAC(time, lat, lon)float32...
- Sampling_Sequence :
- rad_lwsw
- units :
- W/m2
- long_name :
- Clearsky net solar flux at top of atmosphere
- cell_methods :
- time: mean
[3317760 values with dtype=float32]
- FSUTOA(time, lat, lon)float32...
- Sampling_Sequence :
- rad_lwsw
- units :
- W/m2
- long_name :
- Upwelling solar flux at top of atmosphere
- cell_methods :
- time: mean
[3317760 values with dtype=float32]
- ICEFRAC(time, lat, lon)float32...
- units :
- fraction
- long_name :
- Fraction of sfc area covered by sea-ice
- cell_methods :
- time: mean
[3317760 values with dtype=float32]
- ICIMR(time, lev, lat, lon)float32...
- mdims :
- 1
- units :
- kg/kg
- long_name :
- Prognostic in-cloud ice mixing ratio
- cell_methods :
- time: mean
[86261760 values with dtype=float32]
- ICWMR(time, lev, lat, lon)float32...
- mdims :
- 1
- units :
- kg/kg
- long_name :
- Prognostic in-cloud water mixing ratio
- cell_methods :
- time: mean
[86261760 values with dtype=float32]
- LANDFRAC(time, lat, lon)float32...
- units :
- fraction
- long_name :
- Fraction of sfc area covered by land
- cell_methods :
- time: mean
[3317760 values with dtype=float32]
- LHFLX(time, lat, lon)float32...
- units :
- W/m2
- long_name :
- Surface latent heat flux
- cell_methods :
- time: mean
[3317760 values with dtype=float32]
- LWCF(time, lat, lon)float32...
- Sampling_Sequence :
- rad_lwsw
- units :
- W/m2
- long_name :
- Longwave cloud forcing
- cell_methods :
- time: mean
[3317760 values with dtype=float32]
- MSKtem(time, lat, lon)float32...
- units :
- unitless
- long_name :
- TEM mask
- cell_methods :
- time: mean
[3317760 values with dtype=float32]
- OCNFRAC(time, lat, lon)float32...
- units :
- fraction
- long_name :
- Fraction of sfc area covered by ocean
- cell_methods :
- time: mean
[3317760 values with dtype=float32]
- OMEGA(time, lev, lat, lon)float32...
- mdims :
- 1
- units :
- Pa/s
- long_name :
- Vertical velocity (pressure)
- cell_methods :
- time: mean
[86261760 values with dtype=float32]
- OMEGAT(time, lev, lat, lon)float32...
- mdims :
- 1
- units :
- K Pa/s
- long_name :
- Vertical heat flux
- cell_methods :
- time: mean
[86261760 values with dtype=float32]
- PBLH(time, lat, lon)float32...
- units :
- m
- long_name :
- PBL height
- cell_methods :
- time: mean
[3317760 values with dtype=float32]
- PHIS(time, lat, lon)float32...
- units :
- m2/s2
- long_name :
- Surface geopotential
[3317760 values with dtype=float32]
- PRECC(time, lat, lon)float32...
- units :
- m/s
- long_name :
- Convective precipitation rate (liq + ice)
- cell_methods :
- time: mean
[3317760 values with dtype=float32]
- PRECL(time, lat, lon)float32...
- units :
- m/s
- long_name :
- Large-scale (stable) precipitation rate (liq + ice)
- cell_methods :
- time: mean
[3317760 values with dtype=float32]
- PRECSC(time, lat, lon)float32...
- units :
- m/s
- long_name :
- Convective snow rate (water equivalent)
- cell_methods :
- time: mean
[3317760 values with dtype=float32]
- PRECSL(time, lat, lon)float32...
- units :
- m/s
- long_name :
- Large-scale (stable) snow rate (water equivalent)
- cell_methods :
- time: mean
[3317760 values with dtype=float32]
- PS(time, lat, lon)float32...
- units :
- Pa
- long_name :
- Surface pressure
- cell_methods :
- time: mean
[3317760 values with dtype=float32]
- PSL(time, lat, lon)float32...
- units :
- Pa
- long_name :
- Sea level pressure
- cell_methods :
- time: mean
[3317760 values with dtype=float32]
- Q(time, lev, lat, lon)float32...
- mdims :
- 1
- units :
- kg/kg
- long_name :
- Specific humidity
- cell_methods :
- time: mean
[86261760 values with dtype=float32]
- QFLX(time, lat, lon)float32...
- units :
- kg/m2/s
- long_name :
- Surface water flux
- cell_methods :
- time: mean
[3317760 values with dtype=float32]
- QREFHT(time, lat, lon)float32...
- units :
- kg/kg
- long_name :
- Reference height humidity
- cell_methods :
- time: mean
[3317760 values with dtype=float32]
- QRL(time, lev, lat, lon)float32...
- mdims :
- 1
- Sampling_Sequence :
- rad_lwsw
- units :
- K/s
- long_name :
- Longwave heating rate
- cell_methods :
- time: mean
[86261760 values with dtype=float32]
- QRS(time, lev, lat, lon)float32...
- mdims :
- 1
- Sampling_Sequence :
- rad_lwsw
- units :
- K/s
- long_name :
- Solar heating rate
- cell_methods :
- time: mean
[86261760 values with dtype=float32]
- RELHUM(time, lev, lat, lon)float32...
- mdims :
- 1
- units :
- percent
- long_name :
- Relative humidity
- cell_methods :
- time: mean
[86261760 values with dtype=float32]
- SFCLDICE(time, lat, lon)float32...
- units :
- kg/m2/s
- long_name :
- CLDICE surface flux
- cell_methods :
- time: mean
[3317760 values with dtype=float32]
- SFCLDLIQ(time, lat, lon)float32...
- units :
- kg/m2/s
- long_name :
- CLDLIQ surface flux
- cell_methods :
- time: mean
[3317760 values with dtype=float32]
- SHFLX(time, lat, lon)float32...
- units :
- W/m2
- long_name :
- Surface sensible heat flux
- cell_methods :
- time: mean
[3317760 values with dtype=float32]
- SNOWHICE(time, lat, lon)float32...
- units :
- m
- long_name :
- Snow depth over ice
- cell_methods :
- time: mean
[3317760 values with dtype=float32]
- SNOWHLND(time, lat, lon)float32...
- units :
- m
- long_name :
- Water equivalent snow depth
- cell_methods :
- time: mean
[3317760 values with dtype=float32]
- SOLIN(time, lat, lon)float32...
- Sampling_Sequence :
- rad_lwsw
- units :
- W/m2
- long_name :
- Solar insolation
- cell_methods :
- time: mean
[3317760 values with dtype=float32]
- SWCF(time, lat, lon)float32...
- Sampling_Sequence :
- rad_lwsw
- units :
- W/m2
- long_name :
- Shortwave cloud forcing
- cell_methods :
- time: mean
[3317760 values with dtype=float32]
- T(time, lev, lat, lon)float32...
- mdims :
- 1
- units :
- K
- long_name :
- Temperature
- cell_methods :
- time: mean
[86261760 values with dtype=float32]
- TAUX(time, lat, lon)float32...
- units :
- N/m2
- long_name :
- Zonal surface stress
- cell_methods :
- time: mean
[3317760 values with dtype=float32]
- TAUY(time, lat, lon)float32...
- units :
- N/m2
- long_name :
- Meridional surface stress
- cell_methods :
- time: mean
[3317760 values with dtype=float32]
- TGCLDCWP(time, lat, lon)float32...
- Sampling_Sequence :
- rad_lwsw
- units :
- gram/m2
- long_name :
- Total grid-box cloud water path (liquid and ice)
- cell_methods :
- time: mean
[3317760 values with dtype=float32]
- TGCLDIWP(time, lat, lon)float32...
- Sampling_Sequence :
- rad_lwsw
- units :
- gram/m2
- long_name :
- Total grid-box cloud ice water path
- cell_methods :
- time: mean
[3317760 values with dtype=float32]
- TGCLDLWP(time, lat, lon)float32...
- Sampling_Sequence :
- rad_lwsw
- units :
- gram/m2
- long_name :
- Total grid-box cloud liquid water path
- cell_methods :
- time: mean
[3317760 values with dtype=float32]
- TH(time, ilev, lat, lon)float32...
- mdims :
- 2
- units :
- K
- long_name :
- Potential Temperature
- cell_methods :
- time: mean
[89579520 values with dtype=float32]
- TH2d(time, lat, lon)float32...
- units :
- K
- long_name :
- Zonal-Mean potential temp - defined on ilev
- cell_methods :
- time: mean
[3317760 values with dtype=float32]
- TMQ(time, lat, lon)float32...
- units :
- kg/m2
- long_name :
- Total (vertically integrated) precipitable water
- cell_methods :
- time: mean
[3317760 values with dtype=float32]
- TREFHT(time, lat, lon)float32...
- units :
- K
- long_name :
- Reference height temperature
- cell_methods :
- time: mean
[3317760 values with dtype=float32]
- TS(time, lat, lon)float32...
- units :
- K
- long_name :
- Surface temperature (radiative)
- cell_methods :
- time: mean
[3317760 values with dtype=float32]
- TSMN(time, lat, lon)float32...
- units :
- K
- long_name :
- Minimum surface temperature over output period
- cell_methods :
- time: minimum
[3317760 values with dtype=float32]
- TSMX(time, lat, lon)float32...
- units :
- K
- long_name :
- Maximum surface temperature over output period
- cell_methods :
- time: maximum
[3317760 values with dtype=float32]
- U(time, lev, lat, lon)float32...
- mdims :
- 1
- units :
- m/s
- long_name :
- Zonal wind
- cell_methods :
- time: mean
[86261760 values with dtype=float32]
- U10(time, lat, lon)float32...
- units :
- m/s
- long_name :
- 10m wind speed
- cell_methods :
- time: mean
[3317760 values with dtype=float32]
- U2d(time, lat, lon)float32...
- units :
- M/S
- long_name :
- Zonal-Mean zonal wind - defined on ilev
- cell_methods :
- time: mean
[3317760 values with dtype=float32]
- UTGWORO(time, lev, lat, lon)float32...
- mdims :
- 1
- units :
- m/s2
- long_name :
- U tendency - orographic gravity wave drag
- cell_methods :
- time: mean
[86261760 values with dtype=float32]
- UU(time, lev, lat, lon)float32...
- mdims :
- 1
- units :
- m2/s2
- long_name :
- Zonal velocity squared
- cell_methods :
- time: mean
[86261760 values with dtype=float32]
- UV2d(time, lat, lon)float32...
- units :
- M2/S2
- long_name :
- Meridional Flux of Zonal Momentum: 2D prj of zon. mean - defined on ilev
- cell_methods :
- time: mean
[3317760 values with dtype=float32]
- UV3d(time, ilev, lat, lon)float32...
- mdims :
- 2
- units :
- M2/S2
- long_name :
- Meridional Flux of Zonal Momentum: 3D zon. mean
- cell_methods :
- time: mean
[89579520 values with dtype=float32]
- UW2d(time, lat, lon)float32...
- units :
- M2/S2
- long_name :
- Vertical Flux of Zonal Momentum; 2D prj of zon. mean - defined on ilev
- cell_methods :
- time: mean
[3317760 values with dtype=float32]
- UW3d(time, ilev, lat, lon)float32...
- mdims :
- 2
- units :
- M2/S2
- long_name :
- Vertical Flux of Zonal Momentum: 3D zon. mean
- cell_methods :
- time: mean
[89579520 values with dtype=float32]
- V(time, lev, lat, lon)float32...
- mdims :
- 1
- units :
- m/s
- long_name :
- Meridional wind
- cell_methods :
- time: mean
[86261760 values with dtype=float32]
- V2d(time, lat, lon)float32...
- units :
- M/S
- long_name :
- Zonal-Mean meridional wind - defined on ilev
- cell_methods :
- time: mean
[3317760 values with dtype=float32]
- VD01(time, lev, lat, lon)float32...
- mdims :
- 1
- units :
- kg/kg/s
- long_name :
- Vertical diffusion of Q
- cell_methods :
- time: mean
[86261760 values with dtype=float32]
- VQ(time, lev, lat, lon)float32...
- mdims :
- 1
- units :
- m/skg/kg
- long_name :
- Meridional water transport
- cell_methods :
- time: mean
[86261760 values with dtype=float32]
- VT(time, lev, lat, lon)float32...
- mdims :
- 1
- units :
- K m/s
- long_name :
- Meridional heat transport
- cell_methods :
- time: mean
[86261760 values with dtype=float32]
- VTH2d(time, lat, lon)float32...
- units :
- MK/S
- long_name :
- Meridional Heat Flux: 2D prj of zon. mean - defined on ilev
- cell_methods :
- time: mean
[3317760 values with dtype=float32]
- VTH3d(time, ilev, lat, lon)float32...
- mdims :
- 2
- units :
- MK/S
- long_name :
- Meridional Heat Flux: 3D zon. mean
- cell_methods :
- time: mean
[89579520 values with dtype=float32]
- VU(time, lev, lat, lon)float32...
- mdims :
- 1
- units :
- m2/s2
- long_name :
- Meridional flux of zonal momentum
- cell_methods :
- time: mean
[86261760 values with dtype=float32]
- VV(time, lev, lat, lon)float32...
- mdims :
- 1
- units :
- m2/s2
- long_name :
- Meridional velocity squared
- cell_methods :
- time: mean
[86261760 values with dtype=float32]
- W2d(time, lat, lon)float32...
- units :
- M/S
- long_name :
- Zonal-Mean vertical wind - defined on ilev
- cell_methods :
- time: mean
[3317760 values with dtype=float32]
- WTH3d(time, ilev, lat, lon)float32...
- mdims :
- 2
- units :
- MK/S
- long_name :
- Vertical Heat Flux: 3D zon. mean
- cell_methods :
- time: mean
[89579520 values with dtype=float32]
- Z3(time, lev, lat, lon)float32...
- mdims :
- 1
- units :
- m
- long_name :
- Geopotential Height (above sea level)
- cell_methods :
- time: mean
[86261760 values with dtype=float32]
- Conventions :
- CF-1.0
- source :
- CAM
- case :
- cpl_1850_f19
- title :
- UNSET
- logname :
- br546577
- host :
- snow-30.rit.alba
- Version :
- $Name$
- revision_Id :
- $Id$
- initial_file :
- b40.1850.track1.2deg.003.cam.i.0501-01-01-00000.nc
- topography_file :
- /data/rose_scr/cesm_inputdata/atm/cam/topo/USGS-gtopo30_1.9x2.5_remap_c050602.nc
- history :
- Tue Feb 26 17:17:15 2019: ncrcat atm/hist/cpl_1850_f19.cam.h0.0001-01.nc atm/hist/cpl_1850_f19.cam.h0.0001-02.nc atm/hist/cpl_1850_f19.cam.h0.0001-03.nc atm/hist/cpl_1850_f19.cam.h0.0001-04.nc atm/hist/cpl_1850_f19.cam.h0.0001-05.nc atm/hist/cpl_1850_f19.cam.h0.0001-06.nc atm/hist/cpl_1850_f19.cam.h0.0001-07.nc atm/hist/cpl_1850_f19.cam.h0.0001-08.nc atm/hist/cpl_1850_f19.cam.h0.0001-09.nc atm/hist/cpl_1850_f19.cam.h0.0001-10.nc atm/hist/cpl_1850_f19.cam.h0.0001-11.nc atm/hist/cpl_1850_f19.cam.h0.0001-12.nc atm/hist/cpl_1850_f19.cam.h0.0002-01.nc atm/hist/cpl_1850_f19.cam.h0.0002-02.nc atm/hist/cpl_1850_f19.cam.h0.0002-03.nc atm/hist/cpl_1850_f19.cam.h0.0002-04.nc atm/hist/cpl_1850_f19.cam.h0.0002-05.nc atm/hist/cpl_1850_f19.cam.h0.0002-06.nc atm/hist/cpl_1850_f19.cam.h0.0002-07.nc atm/hist/cpl_1850_f19.cam.h0.0002-08.nc atm/hist/cpl_1850_f19.cam.h0.0002-09.nc atm/hist/cpl_1850_f19.cam.h0.0002-10.nc atm/hist/cpl_1850_f19.cam.h0.0002-11.nc atm/hist/cpl_1850_f19.cam.h0.0002-12.nc atm/hist/cpl_1850_f19.cam.h0.0003-01.nc atm/hist/cpl_1850_f19.cam.h0.0003-02.nc atm/hist/cpl_1850_f19.cam.h0.0003-03.nc atm/hist/cpl_1850_f19.cam.h0.0003-04.nc atm/hist/cpl_1850_f19.cam.h0.0003-05.nc atm/hist/cpl_1850_f19.cam.h0.0003-06.nc atm/hist/cpl_1850_f19.cam.h0.0003-07.nc atm/hist/cpl_1850_f19.cam.h0.0003-08.nc atm/hist/cpl_1850_f19.cam.h0.0003-09.nc atm/hist/cpl_1850_f19.cam.h0.0003-10.nc atm/hist/cpl_1850_f19.cam.h0.0003-11.nc atm/hist/cpl_1850_f19.cam.h0.0003-12.nc atm/hist/cpl_1850_f19.cam.h0.0004-01.nc atm/hist/cpl_1850_f19.cam.h0.0004-02.nc atm/hist/cpl_1850_f19.cam.h0.0004-03.nc atm/hist/cpl_1850_f19.cam.h0.0004-04.nc atm/hist/cpl_1850_f19.cam.h0.0004-05.nc atm/hist/cpl_1850_f19.cam.h0.0004-06.nc atm/hist/cpl_1850_f19.cam.h0.0004-07.nc atm/hist/cpl_1850_f19.cam.h0.0004-08.nc atm/hist/cpl_1850_f19.cam.h0.0004-09.nc atm/hist/cpl_1850_f19.cam.h0.0004-10.nc atm/hist/cpl_1850_f19.cam.h0.0004-11.nc atm/hist/cpl_1850_f19.cam.h0.0004-12.nc atm/hist/cpl_1850_f19.cam.h0.0005-01.nc atm/hist/cpl_1850_f19.cam.h0.0005-02.nc atm/hist/cpl_1850_f19.cam.h0.0005-03.nc atm/hist/cpl_1850_f19.cam.h0.0005-04.nc atm/hist/cpl_1850_f19.cam.h0.0005-05.nc atm/hist/cpl_1850_f19.cam.h0.0005-06.nc atm/hist/cpl_1850_f19.cam.h0.0005-07.nc atm/hist/cpl_1850_f19.cam.h0.0005-08.nc atm/hist/cpl_1850_f19.cam.h0.0005-09.nc atm/hist/cpl_1850_f19.cam.h0.0005-10.nc atm/hist/cpl_1850_f19.cam.h0.0005-11.nc atm/hist/cpl_1850_f19.cam.h0.0005-12.nc atm/hist/cpl_1850_f19.cam.h0.0006-01.nc atm/hist/cpl_1850_f19.cam.h0.0006-02.nc atm/hist/cpl_1850_f19.cam.h0.0006-03.nc atm/hist/cpl_1850_f19.cam.h0.0006-04.nc atm/hist/cpl_1850_f19.cam.h0.0006-05.nc atm/hist/cpl_1850_f19.cam.h0.0006-06.nc atm/hist/cpl_1850_f19.cam.h0.0006-07.nc atm/hist/cpl_1850_f19.cam.h0.0006-08.nc atm/hist/cpl_1850_f19.cam.h0.0006-09.nc atm/hist/cpl_1850_f19.cam.h0.0006-10.nc atm/hist/cpl_1850_f19.cam.h0.0006-11.nc atm/hist/cpl_1850_f19.cam.h0.0006-12.nc atm/hist/cpl_1850_f19.cam.h0.0007-01.nc atm/hist/cpl_1850_f19.cam.h0.0007-02.nc atm/hist/cpl_1850_f19.cam.h0.0007-03.nc atm/hist/cpl_1850_f19.cam.h0.0007-04.nc atm/hist/cpl_1850_f19.cam.h0.0007-05.nc atm/hist/cpl_1850_f19.cam.h0.0007-06.nc atm/hist/cpl_1850_f19.cam.h0.0007-07.nc atm/hist/cpl_1850_f19.cam.h0.0007-08.nc atm/hist/cpl_1850_f19.cam.h0.0007-09.nc atm/hist/cpl_1850_f19.cam.h0.0007-10.nc atm/hist/cpl_1850_f19.cam.h0.0007-11.nc atm/hist/cpl_1850_f19.cam.h0.0007-12.nc atm/hist/cpl_1850_f19.cam.h0.0008-01.nc atm/hist/cpl_1850_f19.cam.h0.0008-02.nc atm/hist/cpl_1850_f19.cam.h0.0008-03.nc atm/hist/cpl_1850_f19.cam.h0.0008-04.nc atm/hist/cpl_1850_f19.cam.h0.0008-05.nc atm/hist/cpl_1850_f19.cam.h0.0008-06.nc atm/hist/cpl_1850_f19.cam.h0.0008-07.nc atm/hist/cpl_1850_f19.cam.h0.0008-08.nc atm/hist/cpl_1850_f19.cam.h0.0008-09.nc atm/hist/cpl_1850_f19.cam.h0.0008-10.nc atm/hist/cpl_1850_f19.cam.h0.0008-11.nc atm/hist/cpl_1850_f19.cam.h0.0008-12.nc atm/hist/cpl_1850_f19.cam.h0.0009-01.nc atm/hist/cpl_1850_f19.cam.h0.0009-02.nc atm/hist/cpl_1850_f19.cam.h0.0009-03.nc atm/hist/cpl_1850_f19.cam.h0.0009-04.nc atm/hist/cpl_1850_f19.cam.h0.0009-05.nc atm/hist/cpl_1850_f19.cam.h0.0009-06.nc atm/hist/cpl_1850_f19.cam.h0.0009-07.nc atm/hist/cpl_1850_f19.cam.h0.0009-08.nc atm/hist/cpl_1850_f19.cam.h0.0009-09.nc atm/hist/cpl_1850_f19.cam.h0.0009-10.nc atm/hist/cpl_1850_f19.cam.h0.0009-11.nc atm/hist/cpl_1850_f19.cam.h0.0009-12.nc atm/hist/cpl_1850_f19.cam.h0.0010-01.nc atm/hist/cpl_1850_f19.cam.h0.0010-02.nc atm/hist/cpl_1850_f19.cam.h0.0010-03.nc atm/hist/cpl_1850_f19.cam.h0.0010-04.nc atm/hist/cpl_1850_f19.cam.h0.0010-05.nc atm/hist/cpl_1850_f19.cam.h0.0010-06.nc atm/hist/cpl_1850_f19.cam.h0.0010-07.nc atm/hist/cpl_1850_f19.cam.h0.0010-08.nc atm/hist/cpl_1850_f19.cam.h0.0010-09.nc atm/hist/cpl_1850_f19.cam.h0.0010-10.nc atm/hist/cpl_1850_f19.cam.h0.0010-11.nc atm/hist/cpl_1850_f19.cam.h0.0010-12.nc atm/hist/cpl_1850_f19.cam.h0.0011-01.nc atm/hist/cpl_1850_f19.cam.h0.0011-02.nc atm/hist/cpl_1850_f19.cam.h0.0011-03.nc atm/hist/cpl_1850_f19.cam.h0.0011-04.nc atm/hist/cpl_1850_f19.cam.h0.0011-05.nc atm/hist/cpl_1850_f19.cam.h0.0011-06.nc atm/hist/cpl_1850_f19.cam.h0.0011-07.nc atm/hist/cpl_1850_f19.cam.h0.0011-08.nc atm/hist/cpl_1850_f19.cam.h0.0011-09.nc atm/hist/cpl_1850_f19.cam.h0.0011-10.nc atm/hist/cpl_1850_f19.cam.h0.0011-11.nc atm/hist/cpl_1850_f19.cam.h0.0011-12.nc atm/hist/cpl_1850_f19.cam.h0.0012-01.nc atm/hist/cpl_1850_f19.cam.h0.0012-02.nc atm/hist/cpl_1850_f19.cam.h0.0012-03.nc atm/hist/cpl_1850_f19.cam.h0.0012-04.nc atm/hist/cpl_1850_f19.cam.h0.0012-05.nc atm/hist/cpl_1850_f19.cam.h0.0012-06.nc atm/hist/cpl_1850_f19.cam.h0.0012-07.nc atm/hist/cpl_1850_f19.cam.h0.0012-08.nc atm/hist/cpl_1850_f19.cam.h0.0012-09.nc atm/hist/cpl_1850_f19.cam.h0.0012-10.nc atm/hist/cpl_1850_f19.cam.h0.0012-11.nc atm/hist/cpl_1850_f19.cam.h0.0012-12.nc atm/hist/cpl_1850_f19.cam.h0.0013-01.nc atm/hist/cpl_1850_f19.cam.h0.0013-02.nc atm/hist/cpl_1850_f19.cam.h0.0013-03.nc atm/hist/cpl_1850_f19.cam.h0.0013-04.nc atm/hist/cpl_1850_f19.cam.h0.0013-05.nc atm/hist/cpl_1850_f19.cam.h0.0013-06.nc atm/hist/cpl_1850_f19.cam.h0.0013-07.nc atm/hist/cpl_1850_f19.cam.h0.0013-08.nc atm/hist/cpl_1850_f19.cam.h0.0013-09.nc atm/hist/cpl_1850_f19.cam.h0.0013-10.nc atm/hist/cpl_1850_f19.cam.h0.0013-11.nc atm/hist/cpl_1850_f19.cam.h0.0013-12.nc atm/hist/cpl_1850_f19.cam.h0.0014-01.nc atm/hist/cpl_1850_f19.cam.h0.0014-02.nc atm/hist/cpl_1850_f19.cam.h0.0014-03.nc atm/hist/cpl_1850_f19.cam.h0.0014-04.nc atm/hist/cpl_1850_f19.cam.h0.0014-05.nc atm/hist/cpl_1850_f19.cam.h0.0014-06.nc atm/hist/cpl_1850_f19.cam.h0.0014-07.nc atm/hist/cpl_1850_f19.cam.h0.0014-08.nc atm/hist/cpl_1850_f19.cam.h0.0014-09.nc atm/hist/cpl_1850_f19.cam.h0.0014-10.nc atm/hist/cpl_1850_f19.cam.h0.0014-11.nc atm/hist/cpl_1850_f19.cam.h0.0014-12.nc atm/hist/cpl_1850_f19.cam.h0.0015-01.nc atm/hist/cpl_1850_f19.cam.h0.0015-02.nc atm/hist/cpl_1850_f19.cam.h0.0015-03.nc atm/hist/cpl_1850_f19.cam.h0.0015-04.nc atm/hist/cpl_1850_f19.cam.h0.0015-05.nc atm/hist/cpl_1850_f19.cam.h0.0015-06.nc atm/hist/cpl_1850_f19.cam.h0.0015-07.nc atm/hist/cpl_1850_f19.cam.h0.0015-08.nc atm/hist/cpl_1850_f19.cam.h0.0015-09.nc atm/hist/cpl_1850_f19.cam.h0.0015-10.nc atm/hist/cpl_1850_f19.cam.h0.0015-11.nc atm/hist/cpl_1850_f19.cam.h0.0015-12.nc atm/hist/cpl_1850_f19.cam.h0.0016-01.nc atm/hist/cpl_1850_f19.cam.h0.0016-02.nc atm/hist/cpl_1850_f19.cam.h0.0016-03.nc atm/hist/cpl_1850_f19.cam.h0.0016-04.nc atm/hist/cpl_1850_f19.cam.h0.0016-05.nc atm/hist/cpl_1850_f19.cam.h0.0016-06.nc atm/hist/cpl_1850_f19.cam.h0.0016-07.nc atm/hist/cpl_1850_f19.cam.h0.0016-08.nc atm/hist/cpl_1850_f19.cam.h0.0016-09.nc atm/hist/cpl_1850_f19.cam.h0.0016-10.nc atm/hist/cpl_1850_f19.cam.h0.0016-11.nc atm/hist/cpl_1850_f19.cam.h0.0016-12.nc atm/hist/cpl_1850_f19.cam.h0.0017-01.nc atm/hist/cpl_1850_f19.cam.h0.0017-02.nc atm/hist/cpl_1850_f19.cam.h0.0017-03.nc atm/hist/cpl_1850_f19.cam.h0.0017-04.nc atm/hist/cpl_1850_f19.cam.h0.0017-05.nc atm/hist/cpl_1850_f19.cam.h0.0017-06.nc atm/hist/cpl_1850_f19.cam.h0.0017-07.nc atm/hist/cpl_1850_f19.cam.h0.0017-08.nc atm/hist/cpl_1850_f19.cam.h0.0017-09.nc atm/hist/cpl_1850_f19.cam.h0.0017-10.nc atm/hist/cpl_1850_f19.cam.h0.0017-11.nc atm/hist/cpl_1850_f19.cam.h0.0017-12.nc atm/hist/cpl_1850_f19.cam.h0.0018-01.nc atm/hist/cpl_1850_f19.cam.h0.0018-02.nc atm/hist/cpl_1850_f19.cam.h0.0018-03.nc atm/hist/cpl_1850_f19.cam.h0.0018-04.nc atm/hist/cpl_1850_f19.cam.h0.0018-05.nc atm/hist/cpl_1850_f19.cam.h0.0018-06.nc atm/hist/cpl_1850_f19.cam.h0.0018-07.nc atm/hist/cpl_1850_f19.cam.h0.0018-08.nc atm/hist/cpl_1850_f19.cam.h0.0018-09.nc atm/hist/cpl_1850_f19.cam.h0.0018-10.nc atm/hist/cpl_1850_f19.cam.h0.0018-11.nc atm/hist/cpl_1850_f19.cam.h0.0018-12.nc atm/hist/cpl_1850_f19.cam.h0.0019-01.nc atm/hist/cpl_1850_f19.cam.h0.0019-02.nc atm/hist/cpl_1850_f19.cam.h0.0019-03.nc atm/hist/cpl_1850_f19.cam.h0.0019-04.nc atm/hist/cpl_1850_f19.cam.h0.0019-05.nc atm/hist/cpl_1850_f19.cam.h0.0019-06.nc atm/hist/cpl_1850_f19.cam.h0.0019-07.nc atm/hist/cpl_1850_f19.cam.h0.0019-08.nc atm/hist/cpl_1850_f19.cam.h0.0019-09.nc atm/hist/cpl_1850_f19.cam.h0.0019-10.nc atm/hist/cpl_1850_f19.cam.h0.0019-11.nc atm/hist/cpl_1850_f19.cam.h0.0019-12.nc atm/hist/cpl_1850_f19.cam.h0.0020-01.nc atm/hist/cpl_1850_f19.cam.h0.0020-02.nc atm/hist/cpl_1850_f19.cam.h0.0020-03.nc atm/hist/cpl_1850_f19.cam.h0.0020-04.nc atm/hist/cpl_1850_f19.cam.h0.0020-05.nc atm/hist/cpl_1850_f19.cam.h0.0020-06.nc atm/hist/cpl_1850_f19.cam.h0.0020-07.nc atm/hist/cpl_1850_f19.cam.h0.0020-08.nc atm/hist/cpl_1850_f19.cam.h0.0020-09.nc atm/hist/cpl_1850_f19.cam.h0.0020-10.nc atm/hist/cpl_1850_f19.cam.h0.0020-11.nc atm/hist/cpl_1850_f19.cam.h0.0020-12.nc cpl_1850_f19.cam.h0.nc
- NCO :
- 4.6.8
- nco_openmp_thread_number :
- 1
- DODS.strlen :
- 8
- DODS.dimName :
- chars
- DODS_EXTRA.Unlimited_Dimension :
- time
Lots of different stuff! These are all the different quantities that are calculated as part of the model simulation. Every quantity represents a monthly average.
Want to get more information about a particular variable?
atm_control.co2vmr
<xarray.DataArray 'co2vmr' (time: 240)> array([0.000285, 0.000285, 0.000285, ..., 0.000285, 0.000285, 0.000285]) Coordinates: * time (time) object 0001-02-01 00:00:00 ... 0021-01-01 00:00:00 Attributes: long_name: co2 volume mixing ratio
- time: 240
- 0.0002847 0.0002847 0.0002847 ... 0.0002847 0.0002847 0.0002847
array([0.000285, 0.000285, 0.000285, ..., 0.000285, 0.000285, 0.000285])
- time(time)object0001-02-01 00:00:00 ... 0021-01-...
- long_name :
- time
- bounds :
- time_bnds
array([cftime.DatetimeNoLeap(1, 2, 1, 0, 0, 0, 0), cftime.DatetimeNoLeap(1, 3, 1, 0, 0, 0, 0), cftime.DatetimeNoLeap(1, 4, 1, 0, 0, 0, 0), ..., cftime.DatetimeNoLeap(20, 11, 1, 0, 0, 0, 0), cftime.DatetimeNoLeap(20, 12, 1, 0, 0, 0, 0), cftime.DatetimeNoLeap(21, 1, 1, 0, 0, 0, 0)], dtype=object)
- long_name :
- co2 volume mixing ratio
This is the amount of CO2 in the atmosphere (about 285 parts per million by volume). It is prescribed in these simulations and does not change.
One nice thing about xarray.DataArray
objects is that we can do simple arithmetic with them (already seen several examples of this in the notes above). For example, change the units of CO2 amount to ppm:
atm_control.co2vmr * 1E6
<xarray.DataArray 'co2vmr' (time: 240)> array([284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7]) Coordinates: * time (time) object 0001-02-01 00:00:00 ... 0021-01-01 00:00:00
- time: 240
- 284.7 284.7 284.7 284.7 284.7 284.7 ... 284.7 284.7 284.7 284.7 284.7
array([284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7, 284.7])
- time(time)object0001-02-01 00:00:00 ... 0021-01-...
- long_name :
- time
- bounds :
- time_bnds
array([cftime.DatetimeNoLeap(1, 2, 1, 0, 0, 0, 0), cftime.DatetimeNoLeap(1, 3, 1, 0, 0, 0, 0), cftime.DatetimeNoLeap(1, 4, 1, 0, 0, 0, 0), ..., cftime.DatetimeNoLeap(20, 11, 1, 0, 0, 0, 0), cftime.DatetimeNoLeap(20, 12, 1, 0, 0, 0, 0), cftime.DatetimeNoLeap(21, 1, 1, 0, 0, 0, 0)], dtype=object)
Here’s another variable:
atm_control.SOLIN
<xarray.DataArray 'SOLIN' (time: 240, lat: 96, lon: 144)> [3317760 values with dtype=float32] Coordinates: * time (time) object 0001-02-01 00:00:00 ... 0021-01-01 00:00:00 * lat (lat) float64 -90.0 -88.11 -86.21 -84.32 ... 84.32 86.21 88.11 90.0 * lon (lon) float64 0.0 2.5 5.0 7.5 10.0 ... 350.0 352.5 355.0 357.5 Attributes: Sampling_Sequence: rad_lwsw units: W/m2 long_name: Solar insolation cell_methods: time: mean
- time: 240
- lat: 96
- lon: 144
- ...
[3317760 values with dtype=float32]
- time(time)object0001-02-01 00:00:00 ... 0021-01-...
- long_name :
- time
- bounds :
- time_bnds
array([cftime.DatetimeNoLeap(1, 2, 1, 0, 0, 0, 0), cftime.DatetimeNoLeap(1, 3, 1, 0, 0, 0, 0), cftime.DatetimeNoLeap(1, 4, 1, 0, 0, 0, 0), ..., cftime.DatetimeNoLeap(20, 11, 1, 0, 0, 0, 0), cftime.DatetimeNoLeap(20, 12, 1, 0, 0, 0, 0), cftime.DatetimeNoLeap(21, 1, 1, 0, 0, 0, 0)], dtype=object)
- lat(lat)float64-90.0 -88.11 -86.21 ... 88.11 90.0
- long_name :
- latitude
- units :
- degrees_north
array([-90. , -88.105263, -86.210526, -84.315789, -82.421053, -80.526316, -78.631579, -76.736842, -74.842105, -72.947368, -71.052632, -69.157895, -67.263158, -65.368421, -63.473684, -61.578947, -59.684211, -57.789474, -55.894737, -54. , -52.105263, -50.210526, -48.315789, -46.421053, -44.526316, -42.631579, -40.736842, -38.842105, -36.947368, -35.052632, -33.157895, -31.263158, -29.368421, -27.473684, -25.578947, -23.684211, -21.789474, -19.894737, -18. , -16.105263, -14.210526, -12.315789, -10.421053, -8.526316, -6.631579, -4.736842, -2.842105, -0.947368, 0.947368, 2.842105, 4.736842, 6.631579, 8.526316, 10.421053, 12.315789, 14.210526, 16.105263, 18. , 19.894737, 21.789474, 23.684211, 25.578947, 27.473684, 29.368421, 31.263158, 33.157895, 35.052632, 36.947368, 38.842105, 40.736842, 42.631579, 44.526316, 46.421053, 48.315789, 50.210526, 52.105263, 54. , 55.894737, 57.789474, 59.684211, 61.578947, 63.473684, 65.368421, 67.263158, 69.157895, 71.052632, 72.947368, 74.842105, 76.736842, 78.631579, 80.526316, 82.421053, 84.315789, 86.210526, 88.105263, 90. ])
- lon(lon)float640.0 2.5 5.0 ... 352.5 355.0 357.5
- long_name :
- longitude
- units :
- degrees_east
array([ 0. , 2.5, 5. , 7.5, 10. , 12.5, 15. , 17.5, 20. , 22.5, 25. , 27.5, 30. , 32.5, 35. , 37.5, 40. , 42.5, 45. , 47.5, 50. , 52.5, 55. , 57.5, 60. , 62.5, 65. , 67.5, 70. , 72.5, 75. , 77.5, 80. , 82.5, 85. , 87.5, 90. , 92.5, 95. , 97.5, 100. , 102.5, 105. , 107.5, 110. , 112.5, 115. , 117.5, 120. , 122.5, 125. , 127.5, 130. , 132.5, 135. , 137.5, 140. , 142.5, 145. , 147.5, 150. , 152.5, 155. , 157.5, 160. , 162.5, 165. , 167.5, 170. , 172.5, 175. , 177.5, 180. , 182.5, 185. , 187.5, 190. , 192.5, 195. , 197.5, 200. , 202.5, 205. , 207.5, 210. , 212.5, 215. , 217.5, 220. , 222.5, 225. , 227.5, 230. , 232.5, 235. , 237.5, 240. , 242.5, 245. , 247.5, 250. , 252.5, 255. , 257.5, 260. , 262.5, 265. , 267.5, 270. , 272.5, 275. , 277.5, 280. , 282.5, 285. , 287.5, 290. , 292.5, 295. , 297.5, 300. , 302.5, 305. , 307.5, 310. , 312.5, 315. , 317.5, 320. , 322.5, 325. , 327.5, 330. , 332.5, 335. , 337.5, 340. , 342.5, 345. , 347.5, 350. , 352.5, 355. , 357.5])
- Sampling_Sequence :
- rad_lwsw
- units :
- W/m2
- long_name :
- Solar insolation
- cell_methods :
- time: mean
Apparently this is the incoming solar radiation or insolation, with shape (240,96,144) meaning it’s got 240 months, 96 latitude points and 144 longitude points.
Exercise: Taking a time average#
Take the time average of the
SOLIN
field. Store the result as a new variable.What are the dimensions of the resulting data array? What would be a good way to visualize this quantity?
atm_control.SOLIN.mean(dim='time')
<xarray.DataArray 'SOLIN' (lat: 96, lon: 144)> array([[172.81734, 172.81734, 172.81734, ..., 172.81734, 172.81734, 172.81734], [173.0204 , 173.0204 , 173.02022, ..., 173.01988, 173.02003, 173.02028], [173.62914, 173.62895, 173.62877, ..., 173.62932, 173.6288 , 173.62898], ..., [172.12259, 172.123 , 172.123 , ..., 172.12276, 172.12286, 172.12274], [171.51128, 171.51137, 171.5114 , ..., 171.51158, 171.51155, 171.5115 ], [171.30817, 171.30817, 171.30817, ..., 171.30817, 171.30817, 171.30817]], dtype=float32) Coordinates: * lat (lat) float64 -90.0 -88.11 -86.21 -84.32 ... 84.32 86.21 88.11 90.0 * lon (lon) float64 0.0 2.5 5.0 7.5 10.0 ... 350.0 352.5 355.0 357.5
- lat: 96
- lon: 144
- 172.8 172.8 172.8 172.8 172.8 172.8 ... 171.3 171.3 171.3 171.3 171.3
array([[172.81734, 172.81734, 172.81734, ..., 172.81734, 172.81734, 172.81734], [173.0204 , 173.0204 , 173.02022, ..., 173.01988, 173.02003, 173.02028], [173.62914, 173.62895, 173.62877, ..., 173.62932, 173.6288 , 173.62898], ..., [172.12259, 172.123 , 172.123 , ..., 172.12276, 172.12286, 172.12274], [171.51128, 171.51137, 171.5114 , ..., 171.51158, 171.51155, 171.5115 ], [171.30817, 171.30817, 171.30817, ..., 171.30817, 171.30817, 171.30817]], dtype=float32)
- lat(lat)float64-90.0 -88.11 -86.21 ... 88.11 90.0
- long_name :
- latitude
- units :
- degrees_north
array([-90. , -88.105263, -86.210526, -84.315789, -82.421053, -80.526316, -78.631579, -76.736842, -74.842105, -72.947368, -71.052632, -69.157895, -67.263158, -65.368421, -63.473684, -61.578947, -59.684211, -57.789474, -55.894737, -54. , -52.105263, -50.210526, -48.315789, -46.421053, -44.526316, -42.631579, -40.736842, -38.842105, -36.947368, -35.052632, -33.157895, -31.263158, -29.368421, -27.473684, -25.578947, -23.684211, -21.789474, -19.894737, -18. , -16.105263, -14.210526, -12.315789, -10.421053, -8.526316, -6.631579, -4.736842, -2.842105, -0.947368, 0.947368, 2.842105, 4.736842, 6.631579, 8.526316, 10.421053, 12.315789, 14.210526, 16.105263, 18. , 19.894737, 21.789474, 23.684211, 25.578947, 27.473684, 29.368421, 31.263158, 33.157895, 35.052632, 36.947368, 38.842105, 40.736842, 42.631579, 44.526316, 46.421053, 48.315789, 50.210526, 52.105263, 54. , 55.894737, 57.789474, 59.684211, 61.578947, 63.473684, 65.368421, 67.263158, 69.157895, 71.052632, 72.947368, 74.842105, 76.736842, 78.631579, 80.526316, 82.421053, 84.315789, 86.210526, 88.105263, 90. ])
- lon(lon)float640.0 2.5 5.0 ... 352.5 355.0 357.5
- long_name :
- longitude
- units :
- degrees_east
array([ 0. , 2.5, 5. , 7.5, 10. , 12.5, 15. , 17.5, 20. , 22.5, 25. , 27.5, 30. , 32.5, 35. , 37.5, 40. , 42.5, 45. , 47.5, 50. , 52.5, 55. , 57.5, 60. , 62.5, 65. , 67.5, 70. , 72.5, 75. , 77.5, 80. , 82.5, 85. , 87.5, 90. , 92.5, 95. , 97.5, 100. , 102.5, 105. , 107.5, 110. , 112.5, 115. , 117.5, 120. , 122.5, 125. , 127.5, 130. , 132.5, 135. , 137.5, 140. , 142.5, 145. , 147.5, 150. , 152.5, 155. , 157.5, 160. , 162.5, 165. , 167.5, 170. , 172.5, 175. , 177.5, 180. , 182.5, 185. , 187.5, 190. , 192.5, 195. , 197.5, 200. , 202.5, 205. , 207.5, 210. , 212.5, 215. , 217.5, 220. , 222.5, 225. , 227.5, 230. , 232.5, 235. , 237.5, 240. , 242.5, 245. , 247.5, 250. , 252.5, 255. , 257.5, 260. , 262.5, 265. , 267.5, 270. , 272.5, 275. , 277.5, 280. , 282.5, 285. , 287.5, 290. , 292.5, 295. , 297.5, 300. , 302.5, 305. , 307.5, 310. , 312.5, 315. , 317.5, 320. , 322.5, 325. , 327.5, 330. , 332.5, 335. , 337.5, 340. , 342.5, 345. , 347.5, 350. , 352.5, 355. , 357.5])
Exercise: Plotting the time average insolation#
Make a well-labeled plot of the time-averaged insolation (using the variable you stored above).
Is there a way to further reduce the dimensionality of the data, and plot the information in a different way?
Remember that you can apply the .mean()
operation across any number of named dimensions in a data array.
Comparing the control run with the observed energy budget#
Recall that our investigations so far have been guided by this figure of the observed annual, global mean energy budget:

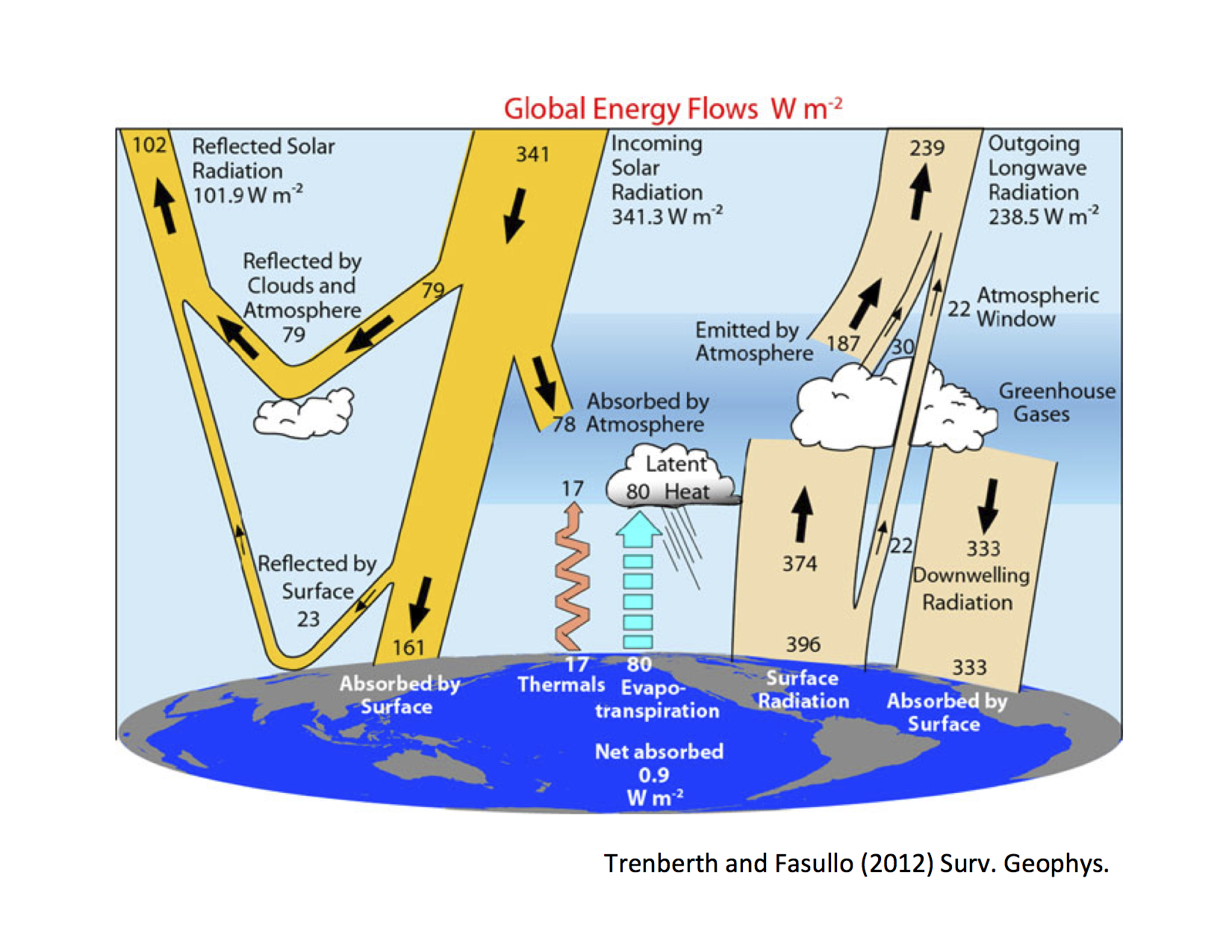

Exercise: Thinking about how to compute a global average#
In order to compare these numbers with the control run, we need to take global averages of the data. What do we mean by global average?
Before proceeding with these notes, try to answer the following question:
Why does it not make sense to simply average over each data point on a latitude-longitude grid?
Weighting for global average#
The global average needs to weighted by the area of each grid cell, which is proportional to the cosine of latitude (do you understand why?)
We can implement this in xarray as follows:
# Take the cosine of latitude (first converting to radians)
coslat = np.cos(np.deg2rad(atm_control.lat))
coslat
<xarray.DataArray 'lat' (lat: 96)> array([6.12323400e-17, 3.30633693e-02, 6.60905843e-02, 9.90455303e-02, 1.31892171e-01, 1.64594590e-01, 1.97117027e-01, 2.29423920e-01, 2.61479941e-01, 2.93250037e-01, 3.24699469e-01, 3.55793847e-01, 3.86499169e-01, 4.16781860e-01, 4.46608807e-01, 4.75947393e-01, 5.04765538e-01, 5.33031729e-01, 5.60715057e-01, 5.87785252e-01, 6.14212713e-01, 6.39968541e-01, 6.65024572e-01, 6.89353409e-01, 7.12928448e-01, 7.35723911e-01, 7.57714870e-01, 7.78877279e-01, 7.99187997e-01, 8.18624815e-01, 8.37166478e-01, 8.54792713e-01, 8.71484244e-01, 8.87222819e-01, 9.01991230e-01, 9.15773327e-01, 9.28554038e-01, 9.40319390e-01, 9.51056516e-01, 9.60753676e-01, 9.69400266e-01, 9.76986831e-01, 9.83505075e-01, 9.88947871e-01, 9.93309266e-01, 9.96584493e-01, 9.98769969e-01, 9.99863305e-01, 9.99863305e-01, 9.98769969e-01, 9.96584493e-01, 9.93309266e-01, 9.88947871e-01, 9.83505075e-01, 9.76986831e-01, 9.69400266e-01, 9.60753676e-01, 9.51056516e-01, 9.40319390e-01, 9.28554038e-01, 9.15773327e-01, 9.01991230e-01, 8.87222819e-01, 8.71484244e-01, 8.54792713e-01, 8.37166478e-01, 8.18624815e-01, 7.99187997e-01, 7.78877279e-01, 7.57714870e-01, 7.35723911e-01, 7.12928448e-01, 6.89353409e-01, 6.65024572e-01, 6.39968541e-01, 6.14212713e-01, 5.87785252e-01, 5.60715057e-01, 5.33031729e-01, 5.04765538e-01, 4.75947393e-01, 4.46608807e-01, 4.16781860e-01, 3.86499169e-01, 3.55793847e-01, 3.24699469e-01, 2.93250037e-01, 2.61479941e-01, 2.29423920e-01, 1.97117027e-01, 1.64594590e-01, 1.31892171e-01, 9.90455303e-02, 6.60905843e-02, 3.30633693e-02, 6.12323400e-17]) Coordinates: * lat (lat) float64 -90.0 -88.11 -86.21 -84.32 ... 84.32 86.21 88.11 90.0 Attributes: long_name: latitude units: degrees_north
- lat: 96
- 6.123e-17 0.03306 0.06609 0.09905 ... 0.06609 0.03306 6.123e-17
array([6.12323400e-17, 3.30633693e-02, 6.60905843e-02, 9.90455303e-02, 1.31892171e-01, 1.64594590e-01, 1.97117027e-01, 2.29423920e-01, 2.61479941e-01, 2.93250037e-01, 3.24699469e-01, 3.55793847e-01, 3.86499169e-01, 4.16781860e-01, 4.46608807e-01, 4.75947393e-01, 5.04765538e-01, 5.33031729e-01, 5.60715057e-01, 5.87785252e-01, 6.14212713e-01, 6.39968541e-01, 6.65024572e-01, 6.89353409e-01, 7.12928448e-01, 7.35723911e-01, 7.57714870e-01, 7.78877279e-01, 7.99187997e-01, 8.18624815e-01, 8.37166478e-01, 8.54792713e-01, 8.71484244e-01, 8.87222819e-01, 9.01991230e-01, 9.15773327e-01, 9.28554038e-01, 9.40319390e-01, 9.51056516e-01, 9.60753676e-01, 9.69400266e-01, 9.76986831e-01, 9.83505075e-01, 9.88947871e-01, 9.93309266e-01, 9.96584493e-01, 9.98769969e-01, 9.99863305e-01, 9.99863305e-01, 9.98769969e-01, 9.96584493e-01, 9.93309266e-01, 9.88947871e-01, 9.83505075e-01, 9.76986831e-01, 9.69400266e-01, 9.60753676e-01, 9.51056516e-01, 9.40319390e-01, 9.28554038e-01, 9.15773327e-01, 9.01991230e-01, 8.87222819e-01, 8.71484244e-01, 8.54792713e-01, 8.37166478e-01, 8.18624815e-01, 7.99187997e-01, 7.78877279e-01, 7.57714870e-01, 7.35723911e-01, 7.12928448e-01, 6.89353409e-01, 6.65024572e-01, 6.39968541e-01, 6.14212713e-01, 5.87785252e-01, 5.60715057e-01, 5.33031729e-01, 5.04765538e-01, 4.75947393e-01, 4.46608807e-01, 4.16781860e-01, 3.86499169e-01, 3.55793847e-01, 3.24699469e-01, 2.93250037e-01, 2.61479941e-01, 2.29423920e-01, 1.97117027e-01, 1.64594590e-01, 1.31892171e-01, 9.90455303e-02, 6.60905843e-02, 3.30633693e-02, 6.12323400e-17])
- lat(lat)float64-90.0 -88.11 -86.21 ... 88.11 90.0
- long_name :
- latitude
- units :
- degrees_north
array([-90. , -88.105263, -86.210526, -84.315789, -82.421053, -80.526316, -78.631579, -76.736842, -74.842105, -72.947368, -71.052632, -69.157895, -67.263158, -65.368421, -63.473684, -61.578947, -59.684211, -57.789474, -55.894737, -54. , -52.105263, -50.210526, -48.315789, -46.421053, -44.526316, -42.631579, -40.736842, -38.842105, -36.947368, -35.052632, -33.157895, -31.263158, -29.368421, -27.473684, -25.578947, -23.684211, -21.789474, -19.894737, -18. , -16.105263, -14.210526, -12.315789, -10.421053, -8.526316, -6.631579, -4.736842, -2.842105, -0.947368, 0.947368, 2.842105, 4.736842, 6.631579, 8.526316, 10.421053, 12.315789, 14.210526, 16.105263, 18. , 19.894737, 21.789474, 23.684211, 25.578947, 27.473684, 29.368421, 31.263158, 33.157895, 35.052632, 36.947368, 38.842105, 40.736842, 42.631579, 44.526316, 46.421053, 48.315789, 50.210526, 52.105263, 54. , 55.894737, 57.789474, 59.684211, 61.578947, 63.473684, 65.368421, 67.263158, 69.157895, 71.052632, 72.947368, 74.842105, 76.736842, 78.631579, 80.526316, 82.421053, 84.315789, 86.210526, 88.105263, 90. ])
- long_name :
- latitude
- units :
- degrees_north
# And divide by its mean value
weight_factor = coslat / coslat.mean(dim='lat')
# Want to see what we just created?
weight_factor
<xarray.DataArray 'lat' (lat: 96)> array([9.72048516e-17, 5.24872953e-02, 1.04917196e-01, 1.57232372e-01, 2.09375617e-01, 2.61289912e-01, 3.12918491e-01, 3.64204898e-01, 4.15093052e-01, 4.65527308e-01, 5.15452516e-01, 5.64814085e-01, 6.13558038e-01, 6.61631075e-01, 7.08980627e-01, 7.55554920e-01, 8.01303024e-01, 8.46174915e-01, 8.90121527e-01, 9.33094803e-01, 9.75047755e-01, 1.01593451e+00, 1.05571035e+00, 1.09433178e+00, 1.13175659e+00, 1.16794383e+00, 1.20285394e+00, 1.23644875e+00, 1.26869152e+00, 1.29954700e+00, 1.32898144e+00, 1.35696266e+00, 1.38346006e+00, 1.40844466e+00, 1.43188916e+00, 1.45376790e+00, 1.47405697e+00, 1.49273418e+00, 1.50977911e+00, 1.52517311e+00, 1.53889936e+00, 1.55094285e+00, 1.56129040e+00, 1.56993071e+00, 1.57685432e+00, 1.58205366e+00, 1.58552305e+00, 1.58725870e+00, 1.58725870e+00, 1.58552305e+00, 1.58205366e+00, 1.57685432e+00, 1.56993071e+00, 1.56129040e+00, 1.55094285e+00, 1.53889936e+00, 1.52517311e+00, 1.50977911e+00, 1.49273418e+00, 1.47405697e+00, 1.45376790e+00, 1.43188916e+00, 1.40844466e+00, 1.38346006e+00, 1.35696266e+00, 1.32898144e+00, 1.29954700e+00, 1.26869152e+00, 1.23644875e+00, 1.20285394e+00, 1.16794383e+00, 1.13175659e+00, 1.09433178e+00, 1.05571035e+00, 1.01593451e+00, 9.75047755e-01, 9.33094803e-01, 8.90121527e-01, 8.46174915e-01, 8.01303024e-01, 7.55554920e-01, 7.08980627e-01, 6.61631075e-01, 6.13558038e-01, 5.64814085e-01, 5.15452516e-01, 4.65527308e-01, 4.15093052e-01, 3.64204898e-01, 3.12918491e-01, 2.61289912e-01, 2.09375617e-01, 1.57232372e-01, 1.04917196e-01, 5.24872953e-02, 9.72048516e-17]) Coordinates: * lat (lat) float64 -90.0 -88.11 -86.21 -84.32 ... 84.32 86.21 88.11 90.0
- lat: 96
- 9.72e-17 0.05249 0.1049 0.1572 ... 0.1572 0.1049 0.05249 9.72e-17
array([9.72048516e-17, 5.24872953e-02, 1.04917196e-01, 1.57232372e-01, 2.09375617e-01, 2.61289912e-01, 3.12918491e-01, 3.64204898e-01, 4.15093052e-01, 4.65527308e-01, 5.15452516e-01, 5.64814085e-01, 6.13558038e-01, 6.61631075e-01, 7.08980627e-01, 7.55554920e-01, 8.01303024e-01, 8.46174915e-01, 8.90121527e-01, 9.33094803e-01, 9.75047755e-01, 1.01593451e+00, 1.05571035e+00, 1.09433178e+00, 1.13175659e+00, 1.16794383e+00, 1.20285394e+00, 1.23644875e+00, 1.26869152e+00, 1.29954700e+00, 1.32898144e+00, 1.35696266e+00, 1.38346006e+00, 1.40844466e+00, 1.43188916e+00, 1.45376790e+00, 1.47405697e+00, 1.49273418e+00, 1.50977911e+00, 1.52517311e+00, 1.53889936e+00, 1.55094285e+00, 1.56129040e+00, 1.56993071e+00, 1.57685432e+00, 1.58205366e+00, 1.58552305e+00, 1.58725870e+00, 1.58725870e+00, 1.58552305e+00, 1.58205366e+00, 1.57685432e+00, 1.56993071e+00, 1.56129040e+00, 1.55094285e+00, 1.53889936e+00, 1.52517311e+00, 1.50977911e+00, 1.49273418e+00, 1.47405697e+00, 1.45376790e+00, 1.43188916e+00, 1.40844466e+00, 1.38346006e+00, 1.35696266e+00, 1.32898144e+00, 1.29954700e+00, 1.26869152e+00, 1.23644875e+00, 1.20285394e+00, 1.16794383e+00, 1.13175659e+00, 1.09433178e+00, 1.05571035e+00, 1.01593451e+00, 9.75047755e-01, 9.33094803e-01, 8.90121527e-01, 8.46174915e-01, 8.01303024e-01, 7.55554920e-01, 7.08980627e-01, 6.61631075e-01, 6.13558038e-01, 5.64814085e-01, 5.15452516e-01, 4.65527308e-01, 4.15093052e-01, 3.64204898e-01, 3.12918491e-01, 2.61289912e-01, 2.09375617e-01, 1.57232372e-01, 1.04917196e-01, 5.24872953e-02, 9.72048516e-17])
- lat(lat)float64-90.0 -88.11 -86.21 ... 88.11 90.0
- long_name :
- latitude
- units :
- degrees_north
array([-90. , -88.105263, -86.210526, -84.315789, -82.421053, -80.526316, -78.631579, -76.736842, -74.842105, -72.947368, -71.052632, -69.157895, -67.263158, -65.368421, -63.473684, -61.578947, -59.684211, -57.789474, -55.894737, -54. , -52.105263, -50.210526, -48.315789, -46.421053, -44.526316, -42.631579, -40.736842, -38.842105, -36.947368, -35.052632, -33.157895, -31.263158, -29.368421, -27.473684, -25.578947, -23.684211, -21.789474, -19.894737, -18. , -16.105263, -14.210526, -12.315789, -10.421053, -8.526316, -6.631579, -4.736842, -2.842105, -0.947368, 0.947368, 2.842105, 4.736842, 6.631579, 8.526316, 10.421053, 12.315789, 14.210526, 16.105263, 18. , 19.894737, 21.789474, 23.684211, 25.578947, 27.473684, 29.368421, 31.263158, 33.157895, 35.052632, 36.947368, 38.842105, 40.736842, 42.631579, 44.526316, 46.421053, 48.315789, 50.210526, 52.105263, 54. , 55.894737, 57.789474, 59.684211, 61.578947, 63.473684, 65.368421, 67.263158, 69.157895, 71.052632, 72.947368, 74.842105, 76.736842, 78.631579, 80.526316, 82.421053, 84.315789, 86.210526, 88.105263, 90. ])
An alternative: use weights already provided in the dataset#
You will find that many gridded datasets already provide a field that gives accurate area weighting.
In the case of the CESM output, the field is called gw
weight_factor2 = atm_control.gw / atm_control.gw.mean(dim='lat')
weight_factor2
<xarray.DataArray 'gw' (lat: 96)> array([0.00656136, 0.05248012, 0.10490285, 0.15721088, 0.209347 , 0.26125419, 0.31287572, 0.36415511, 0.41503631, 0.46546367, 0.51538206, 0.56473688, 0.61347417, 0.66154063, 0.70888371, 0.75545164, 0.80119349, 0.84605925, 0.88999985, 0.93296725, 0.97491447, 1.01579563, 1.05556604, 1.09418219, 1.13160188, 1.16778418, 1.20268952, 1.23627974, 1.2685181 , 1.29936936, 1.32879977, 1.35677717, 1.38327095, 1.40825214, 1.43169343, 1.45356918, 1.47385547, 1.49253013, 1.50957273, 1.52496463, 1.538689 , 1.55073084, 1.56107698, 1.56971611, 1.57663877, 1.5818374 , 1.58530632, 1.58704173, 1.58704173, 1.58530632, 1.5818374 , 1.57663877, 1.56971611, 1.56107698, 1.55073084, 1.538689 , 1.52496463, 1.50957273, 1.49253013, 1.47385547, 1.45356918, 1.43169343, 1.40825214, 1.38327095, 1.35677717, 1.32879977, 1.29936936, 1.2685181 , 1.23627974, 1.20268952, 1.16778418, 1.13160188, 1.09418219, 1.05556604, 1.01579563, 0.97491447, 0.93296725, 0.88999985, 0.84605925, 0.80119349, 0.75545164, 0.70888371, 0.66154063, 0.61347417, 0.56473688, 0.51538206, 0.46546367, 0.41503631, 0.36415511, 0.31287572, 0.26125419, 0.209347 , 0.15721088, 0.10490285, 0.05248012, 0.00656136]) Coordinates: * lat (lat) float64 -90.0 -88.11 -86.21 -84.32 ... 84.32 86.21 88.11 90.0
- lat: 96
- 0.006561 0.05248 0.1049 0.1572 ... 0.1572 0.1049 0.05248 0.006561
array([0.00656136, 0.05248012, 0.10490285, 0.15721088, 0.209347 , 0.26125419, 0.31287572, 0.36415511, 0.41503631, 0.46546367, 0.51538206, 0.56473688, 0.61347417, 0.66154063, 0.70888371, 0.75545164, 0.80119349, 0.84605925, 0.88999985, 0.93296725, 0.97491447, 1.01579563, 1.05556604, 1.09418219, 1.13160188, 1.16778418, 1.20268952, 1.23627974, 1.2685181 , 1.29936936, 1.32879977, 1.35677717, 1.38327095, 1.40825214, 1.43169343, 1.45356918, 1.47385547, 1.49253013, 1.50957273, 1.52496463, 1.538689 , 1.55073084, 1.56107698, 1.56971611, 1.57663877, 1.5818374 , 1.58530632, 1.58704173, 1.58704173, 1.58530632, 1.5818374 , 1.57663877, 1.56971611, 1.56107698, 1.55073084, 1.538689 , 1.52496463, 1.50957273, 1.49253013, 1.47385547, 1.45356918, 1.43169343, 1.40825214, 1.38327095, 1.35677717, 1.32879977, 1.29936936, 1.2685181 , 1.23627974, 1.20268952, 1.16778418, 1.13160188, 1.09418219, 1.05556604, 1.01579563, 0.97491447, 0.93296725, 0.88999985, 0.84605925, 0.80119349, 0.75545164, 0.70888371, 0.66154063, 0.61347417, 0.56473688, 0.51538206, 0.46546367, 0.41503631, 0.36415511, 0.31287572, 0.26125419, 0.209347 , 0.15721088, 0.10490285, 0.05248012, 0.00656136])
- lat(lat)float64-90.0 -88.11 -86.21 ... 88.11 90.0
- long_name :
- latitude
- units :
- degrees_north
array([-90. , -88.105263, -86.210526, -84.315789, -82.421053, -80.526316, -78.631579, -76.736842, -74.842105, -72.947368, -71.052632, -69.157895, -67.263158, -65.368421, -63.473684, -61.578947, -59.684211, -57.789474, -55.894737, -54. , -52.105263, -50.210526, -48.315789, -46.421053, -44.526316, -42.631579, -40.736842, -38.842105, -36.947368, -35.052632, -33.157895, -31.263158, -29.368421, -27.473684, -25.578947, -23.684211, -21.789474, -19.894737, -18. , -16.105263, -14.210526, -12.315789, -10.421053, -8.526316, -6.631579, -4.736842, -2.842105, -0.947368, 0.947368, 2.842105, 4.736842, 6.631579, 8.526316, 10.421053, 12.315789, 14.210526, 16.105263, 18. , 19.894737, 21.789474, 23.684211, 25.578947, 27.473684, 29.368421, 31.263158, 33.157895, 35.052632, 36.947368, 38.842105, 40.736842, 42.631579, 44.526316, 46.421053, 48.315789, 50.210526, 52.105263, 54. , 55.894737, 57.789474, 59.684211, 61.578947, 63.473684, 65.368421, 67.263158, 69.157895, 71.052632, 72.947368, 74.842105, 76.736842, 78.631579, 80.526316, 82.421053, 84.315789, 86.210526, 88.105263, 90. ])
Compute the global, time average insolation#
# Compute the global, time average insolation using our two different weight factors
# Notice that we can apply the .mean() operation simultaneously over several dimensions!
(atm_control.SOLIN * weight_factor).mean(dim=('time', 'lon', 'lat'))
(atm_control.SOLIN * weight_factor2).mean(dim=('time', 'lon', 'lat'))
<xarray.DataArray ()> array(340.30586262)
- 340.3
array(340.30586262)
These numbers should both be very close to 340.3
This value is the global average insolation in units of W m\(^{-2}\).
Exercise: plotting a global average timeseries#
Plot a timeseries of the global average surface temperature in the control simulation.
Surface temperature is called 'TS'
in the dataset.
Make a plot of the global average TS
with time on the x axis. Make sure your global average is properly weighted as discussed above.
TSglobal = (atm_control.TS * weight_factor).mean(dim=('lon','lat'))
TSglobal
<xarray.DataArray (time: 240)> array([285.72898682, 285.49401299, 286.27904211, 287.41386972, 288.27003459, 289.09844124, 289.31503214, 289.14779089, 288.48446959, 287.43825379, 286.30005108, 285.4822201 , 285.52587345, 285.70978305, 286.51907145, 287.39663259, 288.43036138, 289.27239843, 289.49334981, 289.2270018 , 288.56324199, 287.45506122, 286.36152137, 285.68297431, 285.64115059, 286.02903336, 286.66517814, 287.57771538, 288.5114103 , 289.15209553, 289.58562369, 289.51435914, 288.63846921, 287.62349476, 286.53952026, 285.71252715, 285.37900612, 285.68432086, 286.42280295, 287.53516323, 288.52624785, 289.36963343, 289.70397247, 289.38845523, 288.56153317, 287.61485545, 286.58915711, 286.02656523, 285.6876509 , 285.80444733, 286.77147652, 287.6000804 , 288.47466646, 289.30900949, 289.54640526, 289.27115635, 288.60119008, 287.59500245, 286.47227001, 285.94176738, 285.50164567, 286.04132674, 286.69947865, 287.55425306, 288.51615009, 289.240104 , 289.53590774, 289.28245353, 288.4526808 , 287.4798987 , 286.32498383, 285.64667703, 285.53638463, 285.85984702, 286.48845149, 287.36777131, 288.34274536, 289.12537178, 289.46937558, 289.41924937, ... 288.66900064, 289.31232564, 289.71310487, 289.44685327, 288.71353149, 287.64889492, 286.73669719, 285.88254536, 285.93817813, 286.05794423, 286.63321729, 287.70598391, 288.73680573, 289.24659283, 289.6523757 , 289.31808086, 288.48550632, 287.3645237 , 286.46258606, 285.84163214, 285.38701708, 285.81055181, 286.62392007, 287.61150279, 288.43171261, 289.12028406, 289.4036265 , 289.16730135, 288.38935887, 287.26655169, 286.38843632, 285.56931263, 285.34475367, 285.70284077, 286.53049737, 287.37161667, 288.31928104, 288.98644684, 289.40416911, 289.18403561, 288.53231764, 287.34320592, 286.2297441 , 285.59461117, 285.26074355, 285.66897701, 286.59709518, 287.33668608, 288.406746 , 289.1222094 , 289.49321334, 289.45735775, 288.57569049, 287.47754096, 286.72450398, 286.1310169 , 285.91070994, 286.24678875, 286.69563966, 287.79494103, 288.87472496, 289.55314895, 289.76593884, 289.43723345, 288.66578906, 287.63208369, 286.60205948, 286.15867963, 285.85908296, 285.81623454, 286.62021016, 287.67040383, 288.6576103 , 289.17532218, 289.57529292, 289.43251147, 288.62634617, 287.4513469 , 286.34874094, 285.93312728]) Coordinates: * time (time) object 0001-02-01 00:00:00 ... 0021-01-01 00:00:00
- time: 240
- 285.7 285.5 286.3 287.4 288.3 289.1 ... 289.4 288.6 287.5 286.3 285.9
array([285.72898682, 285.49401299, 286.27904211, 287.41386972, 288.27003459, 289.09844124, 289.31503214, 289.14779089, 288.48446959, 287.43825379, 286.30005108, 285.4822201 , 285.52587345, 285.70978305, 286.51907145, 287.39663259, 288.43036138, 289.27239843, 289.49334981, 289.2270018 , 288.56324199, 287.45506122, 286.36152137, 285.68297431, 285.64115059, 286.02903336, 286.66517814, 287.57771538, 288.5114103 , 289.15209553, 289.58562369, 289.51435914, 288.63846921, 287.62349476, 286.53952026, 285.71252715, 285.37900612, 285.68432086, 286.42280295, 287.53516323, 288.52624785, 289.36963343, 289.70397247, 289.38845523, 288.56153317, 287.61485545, 286.58915711, 286.02656523, 285.6876509 , 285.80444733, 286.77147652, 287.6000804 , 288.47466646, 289.30900949, 289.54640526, 289.27115635, 288.60119008, 287.59500245, 286.47227001, 285.94176738, 285.50164567, 286.04132674, 286.69947865, 287.55425306, 288.51615009, 289.240104 , 289.53590774, 289.28245353, 288.4526808 , 287.4798987 , 286.32498383, 285.64667703, 285.53638463, 285.85984702, 286.48845149, 287.36777131, 288.34274536, 289.12537178, 289.46937558, 289.41924937, ... 288.66900064, 289.31232564, 289.71310487, 289.44685327, 288.71353149, 287.64889492, 286.73669719, 285.88254536, 285.93817813, 286.05794423, 286.63321729, 287.70598391, 288.73680573, 289.24659283, 289.6523757 , 289.31808086, 288.48550632, 287.3645237 , 286.46258606, 285.84163214, 285.38701708, 285.81055181, 286.62392007, 287.61150279, 288.43171261, 289.12028406, 289.4036265 , 289.16730135, 288.38935887, 287.26655169, 286.38843632, 285.56931263, 285.34475367, 285.70284077, 286.53049737, 287.37161667, 288.31928104, 288.98644684, 289.40416911, 289.18403561, 288.53231764, 287.34320592, 286.2297441 , 285.59461117, 285.26074355, 285.66897701, 286.59709518, 287.33668608, 288.406746 , 289.1222094 , 289.49321334, 289.45735775, 288.57569049, 287.47754096, 286.72450398, 286.1310169 , 285.91070994, 286.24678875, 286.69563966, 287.79494103, 288.87472496, 289.55314895, 289.76593884, 289.43723345, 288.66578906, 287.63208369, 286.60205948, 286.15867963, 285.85908296, 285.81623454, 286.62021016, 287.67040383, 288.6576103 , 289.17532218, 289.57529292, 289.43251147, 288.62634617, 287.4513469 , 286.34874094, 285.93312728])
- time(time)object0001-02-01 00:00:00 ... 0021-01-...
- long_name :
- time
- bounds :
- time_bnds
array([cftime.DatetimeNoLeap(1, 2, 1, 0, 0, 0, 0), cftime.DatetimeNoLeap(1, 3, 1, 0, 0, 0, 0), cftime.DatetimeNoLeap(1, 4, 1, 0, 0, 0, 0), ..., cftime.DatetimeNoLeap(20, 11, 1, 0, 0, 0, 0), cftime.DatetimeNoLeap(20, 12, 1, 0, 0, 0, 0), cftime.DatetimeNoLeap(21, 1, 1, 0, 0, 0, 0)], dtype=object)
# note that TSglobal.plot() isn't working here
# due to an issue with the weird time axis
# Get around this by plotting manually
fig, ax = plt.subplots()
ax.plot(TSglobal)
ax.set_xlabel('Months')
ax.set_ylabel('Temperature (K)')
ax.grid()
ax.set_title('Global mean temperature in the CESM slab ocean control simulation');

Discussion point#
What do you see in this graph? Do you have any ideas about why the global average temperature looks like this?
Also, what is the time average global-average surface temperature in this simulation?
TSglobal.mean(dim='time')
<xarray.DataArray ()> array(287.54590571)
- 287.5
array(287.54590571)
Finding the radiative fluxes in the model output#
Now that you can take global averages and time averages, we can compare some energy budget values against observations.
The model output contains lots of diagnostics about the radiative fluxes. Here are some CESM naming conventions to help you find the appropriate output fields:
All variables whose names being with
'F'
are an energy flux of some kind.Most have a four-letter code, e.g.
'FLNT'
'FL'
means longwave flux (i.e. terrestrial)'FS'
means shortwave flux (i.e. solar)The third letter indicates direction of the flux:
'U'
= up'D'
= down'N'
= net
The fourth letter indicates the location of the flux:
'T'
= top of atmosphere'S'
= surface
So
'FLNT'
means ‘net longwave flux at the top of atmosphere’, i.e. the outgoing longwave radiation or OLR.
You wil see that these are all 240 x 96 x 144 – i.e. a two-dimensional grid for every month in the simulation.
atm_control.FLNT
<xarray.DataArray 'FLNT' (time: 240, lat: 96, lon: 144)> [3317760 values with dtype=float32] Coordinates: * time (time) object 0001-02-01 00:00:00 ... 0021-01-01 00:00:00 * lat (lat) float64 -90.0 -88.11 -86.21 -84.32 ... 84.32 86.21 88.11 90.0 * lon (lon) float64 0.0 2.5 5.0 7.5 10.0 ... 350.0 352.5 355.0 357.5 Attributes: Sampling_Sequence: rad_lwsw units: W/m2 long_name: Net longwave flux at top of model cell_methods: time: mean
- time: 240
- lat: 96
- lon: 144
- ...
[3317760 values with dtype=float32]
- time(time)object0001-02-01 00:00:00 ... 0021-01-...
- long_name :
- time
- bounds :
- time_bnds
array([cftime.DatetimeNoLeap(1, 2, 1, 0, 0, 0, 0), cftime.DatetimeNoLeap(1, 3, 1, 0, 0, 0, 0), cftime.DatetimeNoLeap(1, 4, 1, 0, 0, 0, 0), ..., cftime.DatetimeNoLeap(20, 11, 1, 0, 0, 0, 0), cftime.DatetimeNoLeap(20, 12, 1, 0, 0, 0, 0), cftime.DatetimeNoLeap(21, 1, 1, 0, 0, 0, 0)], dtype=object)
- lat(lat)float64-90.0 -88.11 -86.21 ... 88.11 90.0
- long_name :
- latitude
- units :
- degrees_north
array([-90. , -88.105263, -86.210526, -84.315789, -82.421053, -80.526316, -78.631579, -76.736842, -74.842105, -72.947368, -71.052632, -69.157895, -67.263158, -65.368421, -63.473684, -61.578947, -59.684211, -57.789474, -55.894737, -54. , -52.105263, -50.210526, -48.315789, -46.421053, -44.526316, -42.631579, -40.736842, -38.842105, -36.947368, -35.052632, -33.157895, -31.263158, -29.368421, -27.473684, -25.578947, -23.684211, -21.789474, -19.894737, -18. , -16.105263, -14.210526, -12.315789, -10.421053, -8.526316, -6.631579, -4.736842, -2.842105, -0.947368, 0.947368, 2.842105, 4.736842, 6.631579, 8.526316, 10.421053, 12.315789, 14.210526, 16.105263, 18. , 19.894737, 21.789474, 23.684211, 25.578947, 27.473684, 29.368421, 31.263158, 33.157895, 35.052632, 36.947368, 38.842105, 40.736842, 42.631579, 44.526316, 46.421053, 48.315789, 50.210526, 52.105263, 54. , 55.894737, 57.789474, 59.684211, 61.578947, 63.473684, 65.368421, 67.263158, 69.157895, 71.052632, 72.947368, 74.842105, 76.736842, 78.631579, 80.526316, 82.421053, 84.315789, 86.210526, 88.105263, 90. ])
- lon(lon)float640.0 2.5 5.0 ... 352.5 355.0 357.5
- long_name :
- longitude
- units :
- degrees_east
array([ 0. , 2.5, 5. , 7.5, 10. , 12.5, 15. , 17.5, 20. , 22.5, 25. , 27.5, 30. , 32.5, 35. , 37.5, 40. , 42.5, 45. , 47.5, 50. , 52.5, 55. , 57.5, 60. , 62.5, 65. , 67.5, 70. , 72.5, 75. , 77.5, 80. , 82.5, 85. , 87.5, 90. , 92.5, 95. , 97.5, 100. , 102.5, 105. , 107.5, 110. , 112.5, 115. , 117.5, 120. , 122.5, 125. , 127.5, 130. , 132.5, 135. , 137.5, 140. , 142.5, 145. , 147.5, 150. , 152.5, 155. , 157.5, 160. , 162.5, 165. , 167.5, 170. , 172.5, 175. , 177.5, 180. , 182.5, 185. , 187.5, 190. , 192.5, 195. , 197.5, 200. , 202.5, 205. , 207.5, 210. , 212.5, 215. , 217.5, 220. , 222.5, 225. , 227.5, 230. , 232.5, 235. , 237.5, 240. , 242.5, 245. , 247.5, 250. , 252.5, 255. , 257.5, 260. , 262.5, 265. , 267.5, 270. , 272.5, 275. , 277.5, 280. , 282.5, 285. , 287.5, 290. , 292.5, 295. , 297.5, 300. , 302.5, 305. , 307.5, 310. , 312.5, 315. , 317.5, 320. , 322.5, 325. , 327.5, 330. , 332.5, 335. , 337.5, 340. , 342.5, 345. , 347.5, 350. , 352.5, 355. , 357.5])
- Sampling_Sequence :
- rad_lwsw
- units :
- W/m2
- long_name :
- Net longwave flux at top of model
- cell_methods :
- time: mean
Exercise: compute terms in the planetary energy budget#
Compute annual, global averages of the following four quantities.
Incoming solar radiation (or insolation)
Absorbed solar radiation (ASR)
Planetary albedo (remember this is a ratio of outgoing to incoming solar radiation)
Outgoing longwave radiation (OLR)
Compare your results briefly to the observations.
A few more tidbits#
Feel free to keep exploring the data!
Many other fields are four-dimensional (time, level, latitude, longitude).
For example, here the air temperature at every point and every month:
atm_control.T
<xarray.DataArray 'T' (time: 240, lev: 26, lat: 96, lon: 144)> [86261760 values with dtype=float32] Coordinates: * lev (lev) float64 3.545 7.389 13.97 23.94 ... 867.2 929.6 970.6 992.6 * time (time) object 0001-02-01 00:00:00 ... 0021-01-01 00:00:00 * lat (lat) float64 -90.0 -88.11 -86.21 -84.32 ... 84.32 86.21 88.11 90.0 * lon (lon) float64 0.0 2.5 5.0 7.5 10.0 ... 350.0 352.5 355.0 357.5 Attributes: mdims: 1 units: K long_name: Temperature cell_methods: time: mean
- time: 240
- lev: 26
- lat: 96
- lon: 144
- ...
[86261760 values with dtype=float32]
- lev(lev)float643.545 7.389 13.97 ... 970.6 992.6
- long_name :
- hybrid level at midpoints (1000*(A+B))
- units :
- level
- positive :
- down
- standard_name :
- atmosphere_hybrid_sigma_pressure_coordinate
- formula_terms :
- a: hyam b: hybm p0: P0 ps: PS
array([ 3.544638, 7.388814, 13.967214, 23.944625, 37.23029 , 53.114605, 70.05915 , 85.439115, 100.514695, 118.250335, 139.115395, 163.66207 , 192.539935, 226.513265, 266.481155, 313.501265, 368.81798 , 433.895225, 510.455255, 600.5242 , 696.79629 , 787.70206 , 867.16076 , 929.648875, 970.55483 , 992.5561 ])
- time(time)object0001-02-01 00:00:00 ... 0021-01-...
- long_name :
- time
- bounds :
- time_bnds
array([cftime.DatetimeNoLeap(1, 2, 1, 0, 0, 0, 0), cftime.DatetimeNoLeap(1, 3, 1, 0, 0, 0, 0), cftime.DatetimeNoLeap(1, 4, 1, 0, 0, 0, 0), ..., cftime.DatetimeNoLeap(20, 11, 1, 0, 0, 0, 0), cftime.DatetimeNoLeap(20, 12, 1, 0, 0, 0, 0), cftime.DatetimeNoLeap(21, 1, 1, 0, 0, 0, 0)], dtype=object)
- lat(lat)float64-90.0 -88.11 -86.21 ... 88.11 90.0
- long_name :
- latitude
- units :
- degrees_north
array([-90. , -88.105263, -86.210526, -84.315789, -82.421053, -80.526316, -78.631579, -76.736842, -74.842105, -72.947368, -71.052632, -69.157895, -67.263158, -65.368421, -63.473684, -61.578947, -59.684211, -57.789474, -55.894737, -54. , -52.105263, -50.210526, -48.315789, -46.421053, -44.526316, -42.631579, -40.736842, -38.842105, -36.947368, -35.052632, -33.157895, -31.263158, -29.368421, -27.473684, -25.578947, -23.684211, -21.789474, -19.894737, -18. , -16.105263, -14.210526, -12.315789, -10.421053, -8.526316, -6.631579, -4.736842, -2.842105, -0.947368, 0.947368, 2.842105, 4.736842, 6.631579, 8.526316, 10.421053, 12.315789, 14.210526, 16.105263, 18. , 19.894737, 21.789474, 23.684211, 25.578947, 27.473684, 29.368421, 31.263158, 33.157895, 35.052632, 36.947368, 38.842105, 40.736842, 42.631579, 44.526316, 46.421053, 48.315789, 50.210526, 52.105263, 54. , 55.894737, 57.789474, 59.684211, 61.578947, 63.473684, 65.368421, 67.263158, 69.157895, 71.052632, 72.947368, 74.842105, 76.736842, 78.631579, 80.526316, 82.421053, 84.315789, 86.210526, 88.105263, 90. ])
- lon(lon)float640.0 2.5 5.0 ... 352.5 355.0 357.5
- long_name :
- longitude
- units :
- degrees_east
array([ 0. , 2.5, 5. , 7.5, 10. , 12.5, 15. , 17.5, 20. , 22.5, 25. , 27.5, 30. , 32.5, 35. , 37.5, 40. , 42.5, 45. , 47.5, 50. , 52.5, 55. , 57.5, 60. , 62.5, 65. , 67.5, 70. , 72.5, 75. , 77.5, 80. , 82.5, 85. , 87.5, 90. , 92.5, 95. , 97.5, 100. , 102.5, 105. , 107.5, 110. , 112.5, 115. , 117.5, 120. , 122.5, 125. , 127.5, 130. , 132.5, 135. , 137.5, 140. , 142.5, 145. , 147.5, 150. , 152.5, 155. , 157.5, 160. , 162.5, 165. , 167.5, 170. , 172.5, 175. , 177.5, 180. , 182.5, 185. , 187.5, 190. , 192.5, 195. , 197.5, 200. , 202.5, 205. , 207.5, 210. , 212.5, 215. , 217.5, 220. , 222.5, 225. , 227.5, 230. , 232.5, 235. , 237.5, 240. , 242.5, 245. , 247.5, 250. , 252.5, 255. , 257.5, 260. , 262.5, 265. , 267.5, 270. , 272.5, 275. , 277.5, 280. , 282.5, 285. , 287.5, 290. , 292.5, 295. , 297.5, 300. , 302.5, 305. , 307.5, 310. , 312.5, 315. , 317.5, 320. , 322.5, 325. , 327.5, 330. , 332.5, 335. , 337.5, 340. , 342.5, 345. , 347.5, 350. , 352.5, 355. , 357.5])
- mdims :
- 1
- units :
- K
- long_name :
- Temperature
- cell_methods :
- time: mean
Often we want to sample the data at a particular place and time. xarray gives us simple ways to do that.
For example, we can interpolate to a particular location in latitude and longitude (here it’s the coordinates of Albany NY):
Tlocal = atm_control.T.interp(lat=42.75, lon=(360-73.8))
Tlocal
<xarray.DataArray 'T' (time: 240, lev: 26)> array([[231.55347435, 230.88840778, 225.30258457, ..., 268.2404776 , 269.52409576, 269.43490089], [228.10008728, 223.95615376, 221.31091049, ..., 274.1026815 , 275.9925309 , 275.95261742], [233.83040749, 227.64979877, 222.90131077, ..., 273.13557961, 275.45856834, 276.13333687], ..., [232.50221451, 228.86013168, 225.24411854, ..., 285.83419807, 288.1594445 , 287.90178192], [224.24851162, 221.39988674, 219.95343647, ..., 277.54828316, 279.91035378, 279.59760986], [220.30998913, 218.22460804, 217.92282791, ..., 268.73481789, 270.65231613, 270.98946404]]) Coordinates: * lev (lev) float64 3.545 7.389 13.97 23.94 ... 867.2 929.6 970.6 992.6 * time (time) object 0001-02-01 00:00:00 ... 0021-01-01 00:00:00 lat float64 42.75 lon float64 286.2 Attributes: mdims: 1 units: K long_name: Temperature cell_methods: time: mean
- time: 240
- lev: 26
- 231.6 230.9 225.3 220.2 216.9 213.8 ... 265.7 267.2 268.7 270.7 271.0
array([[231.55347435, 230.88840778, 225.30258457, ..., 268.2404776 , 269.52409576, 269.43490089], [228.10008728, 223.95615376, 221.31091049, ..., 274.1026815 , 275.9925309 , 275.95261742], [233.83040749, 227.64979877, 222.90131077, ..., 273.13557961, 275.45856834, 276.13333687], ..., [232.50221451, 228.86013168, 225.24411854, ..., 285.83419807, 288.1594445 , 287.90178192], [224.24851162, 221.39988674, 219.95343647, ..., 277.54828316, 279.91035378, 279.59760986], [220.30998913, 218.22460804, 217.92282791, ..., 268.73481789, 270.65231613, 270.98946404]])
- lev(lev)float643.545 7.389 13.97 ... 970.6 992.6
- long_name :
- hybrid level at midpoints (1000*(A+B))
- units :
- level
- positive :
- down
- standard_name :
- atmosphere_hybrid_sigma_pressure_coordinate
- formula_terms :
- a: hyam b: hybm p0: P0 ps: PS
array([ 3.544638, 7.388814, 13.967214, 23.944625, 37.23029 , 53.114605, 70.05915 , 85.439115, 100.514695, 118.250335, 139.115395, 163.66207 , 192.539935, 226.513265, 266.481155, 313.501265, 368.81798 , 433.895225, 510.455255, 600.5242 , 696.79629 , 787.70206 , 867.16076 , 929.648875, 970.55483 , 992.5561 ])
- time(time)object0001-02-01 00:00:00 ... 0021-01-...
- long_name :
- time
- bounds :
- time_bnds
array([cftime.DatetimeNoLeap(1, 2, 1, 0, 0, 0, 0), cftime.DatetimeNoLeap(1, 3, 1, 0, 0, 0, 0), cftime.DatetimeNoLeap(1, 4, 1, 0, 0, 0, 0), ..., cftime.DatetimeNoLeap(20, 11, 1, 0, 0, 0, 0), cftime.DatetimeNoLeap(20, 12, 1, 0, 0, 0, 0), cftime.DatetimeNoLeap(21, 1, 1, 0, 0, 0, 0)], dtype=object)
- lat()float6442.75
- long_name :
- latitude
- units :
- degrees_north
array(42.75)
- lon()float64286.2
- long_name :
- longitude
- units :
- degrees_east
array(286.2)
- mdims :
- 1
- units :
- K
- long_name :
- Temperature
- cell_methods :
- time: mean
We can also use time indexing to pick out a particular year and month:
# The .sel notation mean "select" along the given coordinate
# The string that follows is year-month. Our simulation begins in year 0001.
Tlocal.sel(time='0020-01') # a particular January
<xarray.DataArray 'T' (time: 1, lev: 26)> array([[222.22812035, 218.28293472, 216.42282665, 215.97889965, 216.2183744 , 215.51508125, 214.45609436, 212.85779438, 212.8932338 , 213.25322216, 213.16839024, 213.62496151, 214.18230812, 216.96137932, 222.24211334, 228.96922817, 236.70113045, 244.78092411, 252.25793308, 258.92818031, 263.91473778, 266.81556206, 268.95294579, 268.96147919, 270.59828033, 270.51311325]]) Coordinates: * lev (lev) float64 3.545 7.389 13.97 23.94 ... 867.2 929.6 970.6 992.6 * time (time) object 0020-01-01 00:00:00 lat float64 42.75 lon float64 286.2 Attributes: mdims: 1 units: K long_name: Temperature cell_methods: time: mean
- time: 1
- lev: 26
- 222.2 218.3 216.4 216.0 216.2 215.5 ... 266.8 269.0 269.0 270.6 270.5
array([[222.22812035, 218.28293472, 216.42282665, 215.97889965, 216.2183744 , 215.51508125, 214.45609436, 212.85779438, 212.8932338 , 213.25322216, 213.16839024, 213.62496151, 214.18230812, 216.96137932, 222.24211334, 228.96922817, 236.70113045, 244.78092411, 252.25793308, 258.92818031, 263.91473778, 266.81556206, 268.95294579, 268.96147919, 270.59828033, 270.51311325]])
- lev(lev)float643.545 7.389 13.97 ... 970.6 992.6
- long_name :
- hybrid level at midpoints (1000*(A+B))
- units :
- level
- positive :
- down
- standard_name :
- atmosphere_hybrid_sigma_pressure_coordinate
- formula_terms :
- a: hyam b: hybm p0: P0 ps: PS
array([ 3.544638, 7.388814, 13.967214, 23.944625, 37.23029 , 53.114605, 70.05915 , 85.439115, 100.514695, 118.250335, 139.115395, 163.66207 , 192.539935, 226.513265, 266.481155, 313.501265, 368.81798 , 433.895225, 510.455255, 600.5242 , 696.79629 , 787.70206 , 867.16076 , 929.648875, 970.55483 , 992.5561 ])
- time(time)object0020-01-01 00:00:00
- long_name :
- time
- bounds :
- time_bnds
array([cftime.DatetimeNoLeap(20, 1, 1, 0, 0, 0, 0)], dtype=object)
- lat()float6442.75
- long_name :
- latitude
- units :
- degrees_north
array(42.75)
- lon()float64286.2
- long_name :
- longitude
- units :
- degrees_east
array(286.2)
- mdims :
- 1
- units :
- K
- long_name :
- Temperature
- cell_methods :
- time: mean
Now, for example, we can plot the temperature as a function of pressure at this place and time:
Tlocal.sel(time='0020-01').plot()
[<matplotlib.lines.Line2D at 0x160a3bb80>]

Credits#
This notebook is part of The Climate Laboratory, an open-source textbook developed and maintained by Brian E. J. Rose, University at Albany.
It is licensed for free and open consumption under the Creative Commons Attribution 4.0 International (CC BY 4.0) license.
Development of these notes and the climlab software is partially supported by the National Science Foundation under award AGS-1455071 to Brian Rose. Any opinions, findings, conclusions or recommendations expressed here are mine and do not necessarily reflect the views of the National Science Foundation.
