1. What is a Climate Model?

First, some thoughts on modeling from xkcd

physicists

Let’s be a little pedantic and decompose that question:

  • what is Climate?
  • what is a Model?

Climate is

  • statistics of weather, e.g. space and time averages of temperature and precip.
  • (statistics might also mean higher-order stats: variability etc)

A model is

  • not easy to define!

Wikipedia: Conceptual model

In the most general sense, a model is anything used in any way to represent anything else. Some models are physical objects, for instance, a toy model which may be assembled, and may even be made to work like the object it represents. Whereas, a conceptual model is a model made of the composition of concepts, that thus exists only in the mind. Conceptual models are used to help us know, understand, or simulate the subject matter they represent.

George E. P. Box (statistician):

Essentially, all models are wrong, but some are useful.”

From the Climate Modelling Primer, 4th ed McGuffie & Henderson-Sellers, 2014

In the broadest sense, models are for learning about the world (in our case, the climate) and the learning takes place in the contruction and the manipulation of the model, as anyone who has watched a child build idealised houses or spaceships with Lego, or built with it themselves, will know. Climate models are, likewise, idealised representations of a complicated and complex reality through which our understanding of the climate has significantly expanded. All models involve some ignoring, distoring and approximating, but gradually they allow us to build understanding of the system being modelled. A child’s Lego construction typically contains the essential elements of the real objects, improves with attention to detail, helps them understand the real world, but is never confused with the real thing.

A minimal definition of a climate model

A representation of the exchange of energy between the Earth system and space, and its effects on average surface temperature.

(what average?)

Note the focus on planetary energy budget. That’s the key to all climate modeling.

2. The observed global energy budget

The figure below shows current best estimates of the global, annual mean energy fluxes through the climate system Trenberth & Fasullo, 2012.

We will look at many of these processes in detail throughout the course.

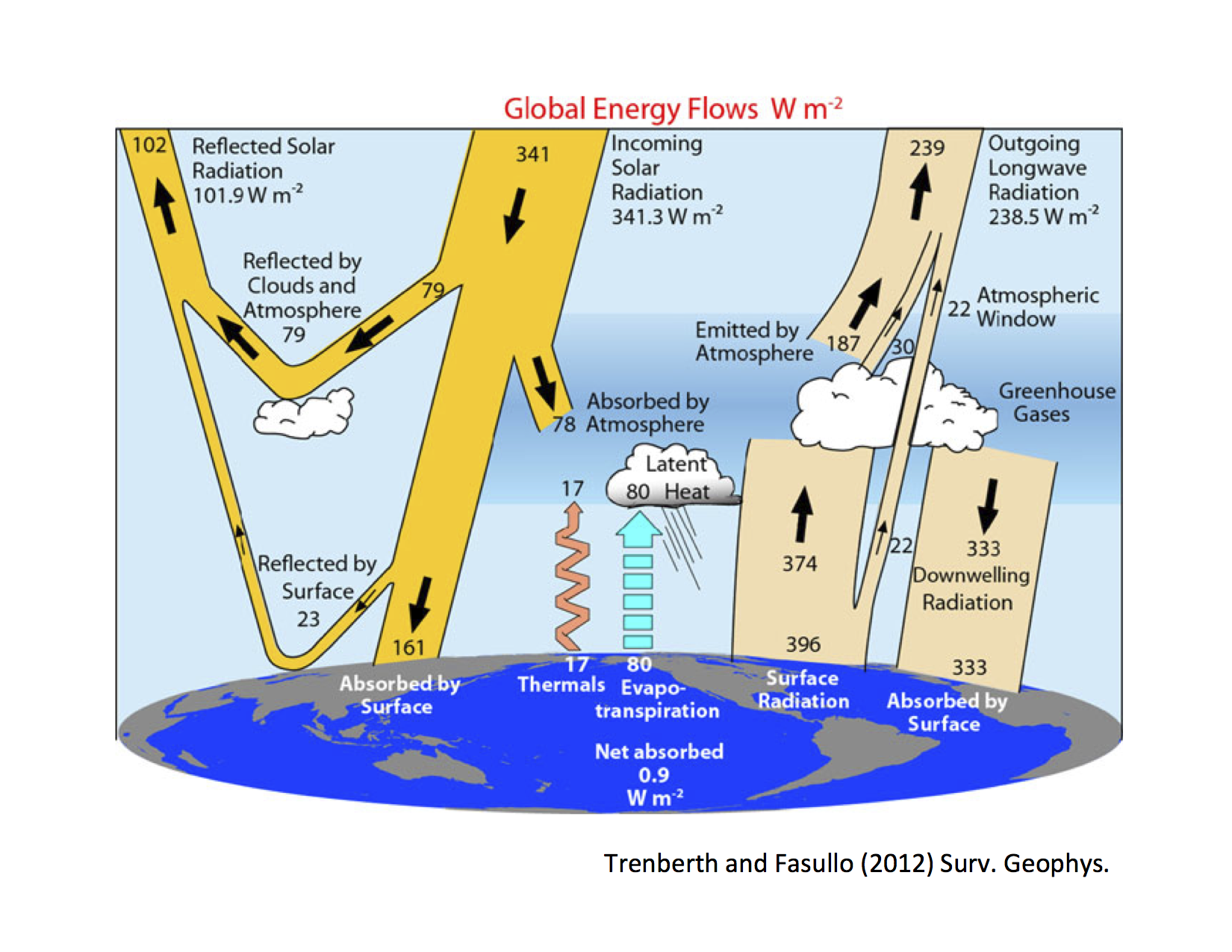

Observed global energy flows from Trenberth and Fasullo (2012)

Things to note:

On the shortwave side

  • global mean albedo is 101.9 W m−2^{-2} / 341.3 W m−2^{-2} = 0.299
  • Reflection off clouds = 79 W m−2^{-2}
  • Off surface = 23 W m−2^{-2}
    • 3 times as much reflection off clouds as off surface

Why?? Think about both areas of ice and snow, and the fact that sunlight has to travel through cloudy atmosphere to get to the ice and snow. Also there is some absorption of shortwave by the atmosphere.

  • Atmospheric absorption = 78 W m−2^{-2} (so about the same as reflected by clouds)

QUESTION: Which gases contribute to shortwave absorption?

  • O3_3 and H2_2O mostly.
  • We will look at this later.

On the longwave side

First, let’s define a very important term:

Outgoing Longwave Radiation
The energy emitted by the planet that escapes to space (often abbreviated as OLR).

Note the following:

  • Observed emission from the SURFACE is 396 W m−2^{-2}
  • very close to the blackbody emission σT4\sigma T^4 at T=288T = 288 K (the global mean surface temperature).
  • BUT emission to space (OLR) is much smaller = 239 W m−2^{-2}

QUESTION: What do we call this? (greenhouse effect)

Look at net numbers…

  • Net absorbed = 0.9 W m−2^{-2}
  • Why?
  • Where is that heat going?

Note, the exchanges of energy between the surface and the atmosphere are complicated, involve a number of different processes. We will look at these more carefully later.

Additional points:

  • Notice that this is a budget of energy, not temperature.

  • We will need to discuss the connection between the two

  • Clouds affect both longwave and shortwave sides of the budget.

  • WATER is involved in many of the terms:

    • evaporation
    • latent heating (equal and opposite in the global mean)
    • clouds
    • greenhouse effect
    • atmospheric SW absorption
    • surface reflectivity (ice and snow)

Discussion point

How might we expect some of the terms in the global energy budget to vary under anthropogenic climate change?

3. Using Python to compute emission to space

Most of what follows is intended as a “fill in the blanks” exercise. We will practice writing some Python code while discussing the physical process of longwave emission to space.

Suppose the Earth behaves like a blackbody radiator with effective global mean emission temperature TeT_e.

Then we can calculate the Outgoing Longwave Radiation from

OLR=σTe4OLR = \sigma T_e^4
(1)

where σ=5.67×10−8\sigma = 5.67 \times 10{-8} W m−2^{-2} K−4^{-4} the Stefan-Boltzmann constant

We can just take this as a definition of the emission temperature TeT_e.

Looking back at the observations, the global, annual mean value for OLR is 238.5 W m−2^{-2}.

Calculate the emission temperature TeT_e

Rerranging the Stefan-Boltzmann law we get

Te=(OLRσ)14T_e = \left(\frac{\text{OLR}}{\sigma} \right)^{\frac{1}{4}}
(2)

First just use Python like a hand calculator to calculate TeT_e iteractively:

Try typing a few different ways, with and without whitespace.

But typing numbers interactively is tedious and error prone. Let’s define a variable called sigma

Thoughts on emission temperature

What value did we find for the emission temperature TeT_e? How does it compare to the actual global mean surface temperature?

Is the blackbody radiator a good model for the Earth’s emission to space?

A simple greenhouse model

The emission to space is lower because of the greenhouse effect, which we will study in detail later.

For now, just introduce a basic concept:

Only a fraction of the surface emission makes it out to space.

We will model the OLR as

OLR=τσTs4\text{OLR} = \tau \sigma T_s^4
(3)

where τ\tau is a number we will call the transmissivity of the atmosphere.

Let’s fit this model to observations:

τ=OLRσTs4\tau = \frac{\text{OLR}}{\sigma T_s^4}
(4)
#tau = 238.5 / sigma / 288**4

Try calculating OLR for a warmer Earth at 292 K:

Naturally the emission to space is higher. By how much has it increased for this 4 degree warming?

Answer: 13.5 W m−2^{-2}. Okay but this is tedious and prone to error. What we really want to do is define a reusable function

Note a few things:

  • The colon at the end of the first line indicates that there is more coming.
  • The interpreter automatically indents the code for us (after the colon)
  • The interpreter automatically colors certain key words
  • We need to hit return one more time at the end to finish our function

Once a function is defined, we can call it interactively:

# print(OLR(288), OLR(292), OLR(292)-OLR(288))

Note also that we defined variables named sigma and tau inside our OLR function.

What happens if you try to print(tau)?

Note that we didn’t really need to define those variables inside the function. We could have written the function in one line.

But sometimes using named variables makes our code much easier to read and understand!

Arrays with numpy

Now let’s try some array calculations:

#import numpy as np
#T = np.linspace(230, 300, 10)
#print(T)
  • We have just created an array object.
  • The linspace function creates an array of numbers evenly spaced between the start and end points.
  • The third argument tells Python how many elements we want.

We will use the numpy package all the time. It is the basic workhorse of scientific computing with Python. We can’t do much with arrays of numbers.

Does our OLR function work on an array of temperature values?

Now let’s assign these values to a new variable.

#OLR = OLR(T)

Now try again to compute OLR(288)

What do you get?

Now let’s re-enter our function. Start typing def and then hit the “up arrow” key. What happens?

The editor gives us lots of useful keyboard shortcuts.

Here it’s looking up the last expression we entered that began with def. Saves a lot of time and typing!

Re-enter the function.

What happens if you use the up arrow without typing anything first?

Also, try typing history

This is very handy. The Python console is taking notes for you!

4. Summary

  • Climate is essentially statistics of weather.
  • The planet warms up or cools down in response to differences between energy absorbed from the sun and energy emitted to space.
  • A climate model represents (mathematically of numerically) these exchanges of energy between the Earth system and space.
  • The observed emission to space or Outgoing Longwave Radiation is consistent with an emission temperature Te=255T_e = 255 K -- much colder than Earth’s surface.
  • This is evidence of the greenhouse effect.
  • We adopted a very simple greenhouse model, assuming a fixed transmissivity τ\tau for the atmosphere.
  • τ\tau conceptually represents the fraction of the emission from the surface that makes it all the way to space. It is a number less than 1.
  • Python is fun and useful.
